Toyolift Alloy Steel Chain
High-Grade Strength & Traceable Quality
What is an Alloy Steel Chain?
An Alloy Steel Lifting Chain is a calibrated load chain, recognizable by the T8 embossed mark, that is specifically designed for use in lifting equipment such as Chain Hoists and Lever Hoists. This chain, which is made from a high grade 80 alloy, is specially heat treated to enhance its tensile strength, resistance to wear, and shock absorbing capabilities. The chain can be supplied in either a black or galvanized finish

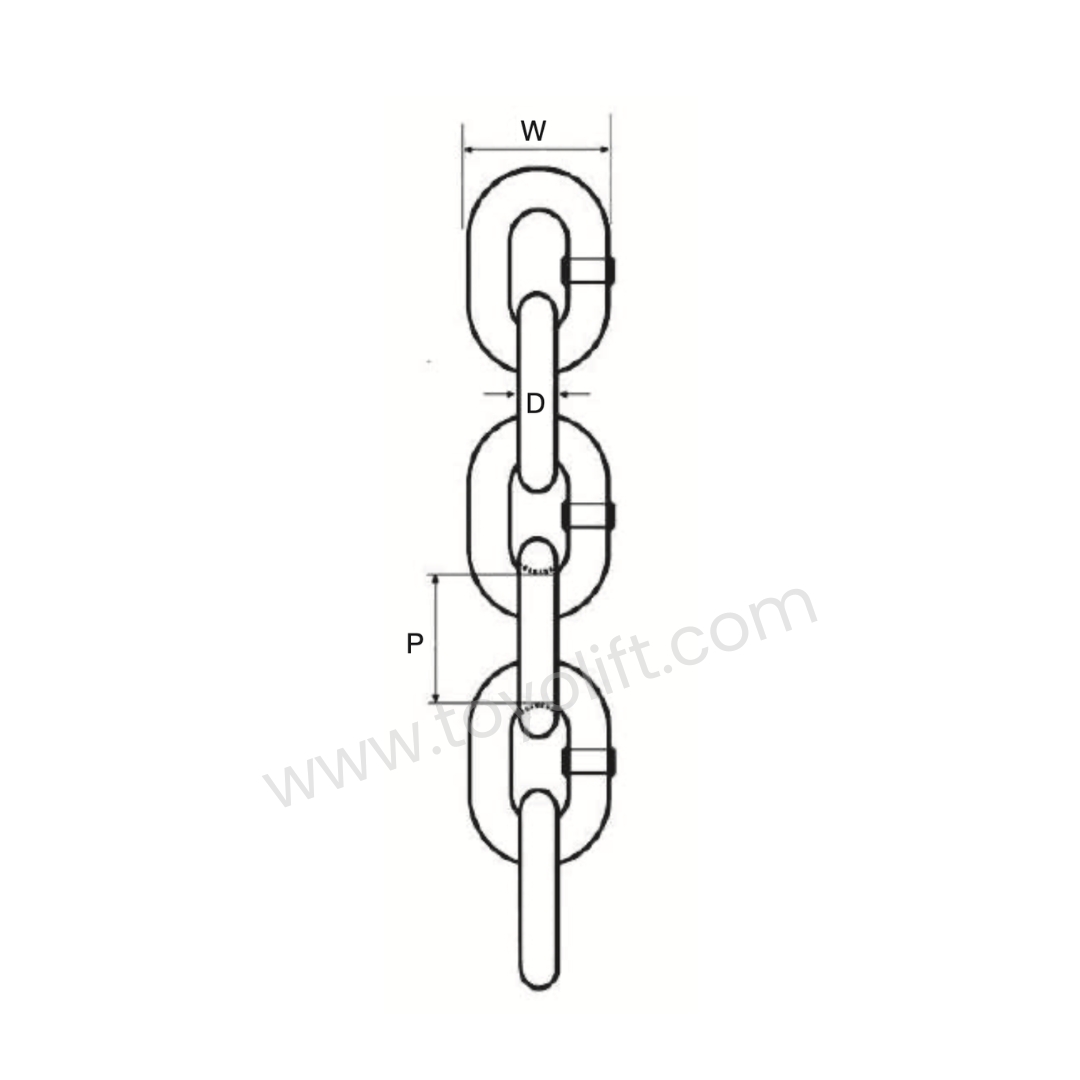

| Item No. | Material Diameter D(mm) |
Pitch P(mm) |
Outside Width W(mm) |
Working Load Limit (KN) |
Min. Breaking Load (KN) |
Weight kg/m |
|---|---|---|---|---|---|---|
| 0515 | 5 | 15 | 17 | 7.84 | 31.38 | 0.55 |
| 0618 | 6 | 18 | 20 | 11.76 | 47.07 | 0.78 |
| 0631 | 6.3 | 19 | 22.6 | 12.5 | 49.9 | 0.86 |
| 0711 | 7.1 | 21 | 23 | 15.69 | 62.76 | 1.09 |
| 1824 | 8 | 24 | 26 | 19.61 | 78.45 | 1.4 |
| 0927 | 9 | 27 | 32.2 | 25 | 102 | 1.76 |
| 1030 | 10 | 30 | 33 | 31.38 | 125.52 | 2.22 |
| 0112 | 11.2 | 34 | 39 | 38 | 154 | 2.8 |
Key Performance Features:
- Material and Grade: The chain is a high grade 80 alloy load chain.
- Durability: It is heat treated to maximize tensile strength, resistance to wear, and shock absorbing capabilities.
- Traceability: The chain is recognizable and traceable by the T8 embossed mark.

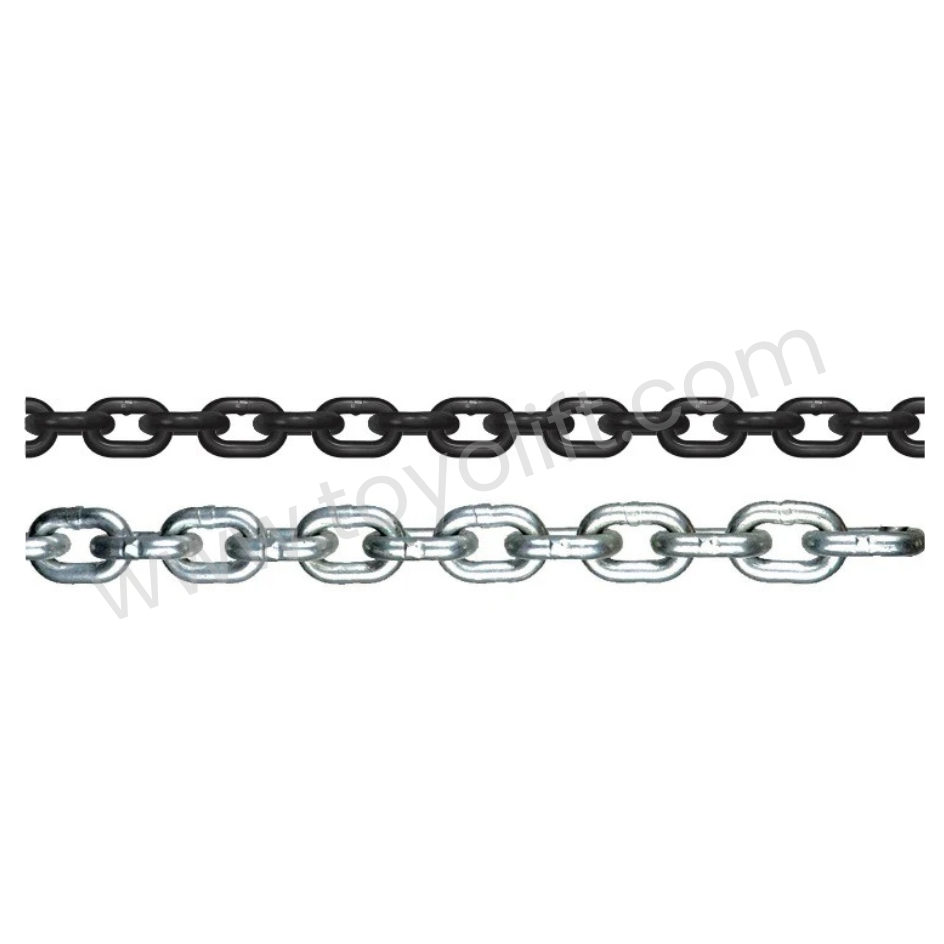

- Finishes: It is available in both black and galvanized finishes.
Safety and Compliance Standards
The Toyolift alloy steel chain meets the standard EN 818-7.
FAQ
Q: What material and grade is the chain?
It is a high grade 80 alloy load chain, made from alloy steel.
Q: What visual mark identifies this chain?
The chain is recognizable and traceable by the T8 embossed mark.
Q: What kind of treatment does the chain undergo?
The chain is heat treated to enhance its tensile strength, resistance to wear, and shock absorbing capabilities.
