What is a Manual Stacker?
Toyolift manual stacker is a versatile lifting tool designed to move and stack palletized goods in warehouses or retail spaces. It serves as a cost-effective alternative to powered forklifts for businesses that manage smaller inventory volumes. The SDJ series is specifically built to handle European pallets with precision. This equipment is essential for optimizing storage space in your facility.

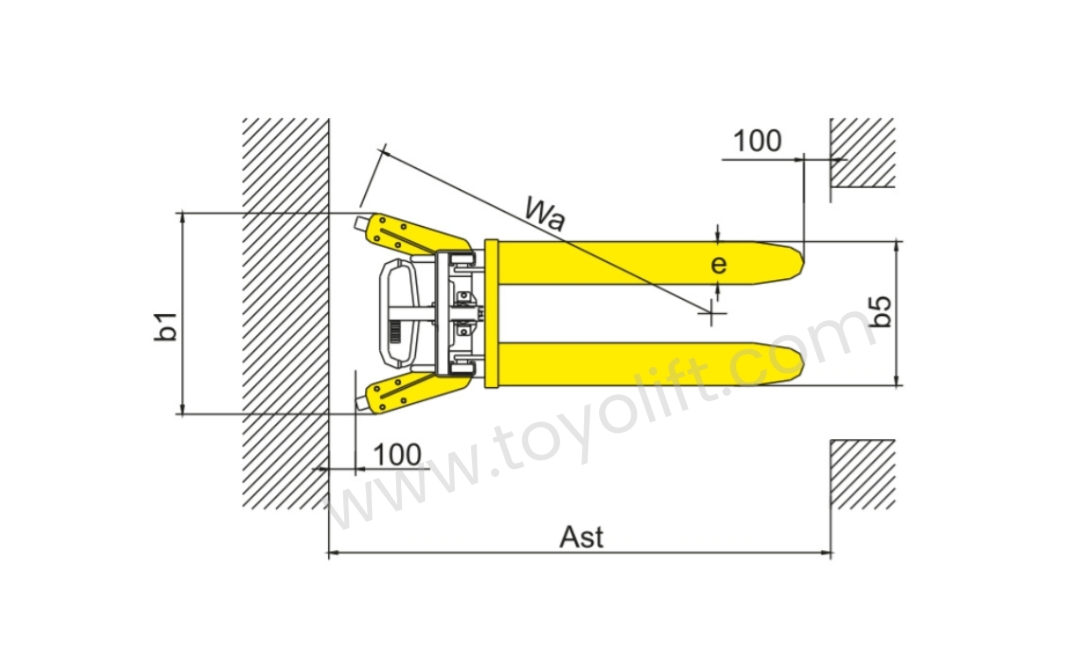

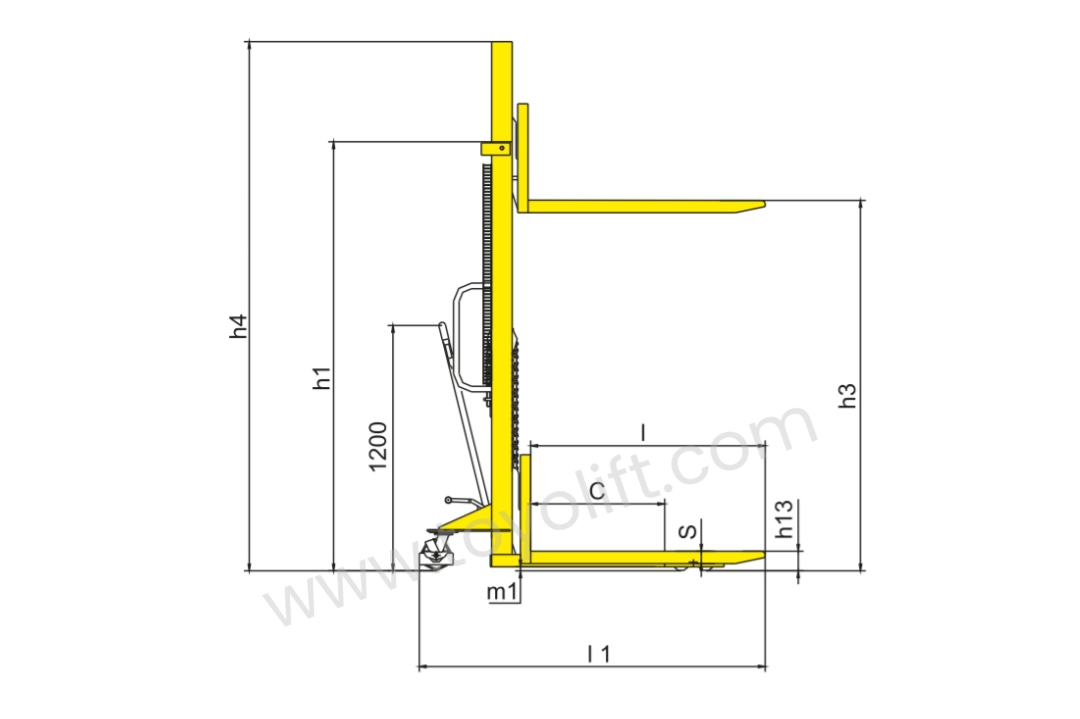

| Model | Parameter Symbol (Unit) | SDJ500 | SDJ1000 | SDJ1500 |
|---|---|---|---|---|
| Load capacity/rated load | Q (kg) | 500 | 1000 | 1500 |
| Load centre distance | c (mm) | 600 | 600 | 400 |
| Fork height, lowered | h₁₃ (mm) | 90 | 90 | 90 |
| Height, mast lowered | h₁ (mm) | 1490/2080 | 1490/1720/2080/1838/2090 | 2080 |
| Max. lift height | h₃ (mm) | 1000/1600 | 1000/1200/1600/2500/3000 | 1600 |
| Height, mast extended | h₄ (mm) | 1490/2087 | 1490/1720/2087/3012/3512 | 2087 |
| Overall length | l₁ (mm) | 1685 | 1685/1695 | 1685 |
| Overall width | b₁ (mm) | 755 | 755/755/755/860/860 | 755 |
| Fork dimensions | s/e/l (mm) | 55/170/1150 | 55/170/1150 | 55/170/1150 |
| Width overall forks | b₅ (mm) | 550 | 550/550/550/580/580 | 550 |
| Turning radius | Wₐ (mm) | 1325 | 1325/1350 | 1325 |
| Lift speed, laden/unladen | mm/time | 23/25 | 20/22 | 16/18 |
| Service weight | kg | 185 / 213 | 190/198/214/292/305 | 239 |
Key Performance Features:
The SDJ series offers several features to improve productivity and durability within your operations. These include the following:
- Diverse Load Capacities: You can choose from models that support 500kg, 1000kg, or 1500kg based on your specific requirements.
- Strong Construction: The high-quality steel mast and rigid frame ensure the stacker remains stable during heavy lifts.
- Dual Lifting Methods: Operators can use either the hand lever or the foot pedal to control the lifting function. This flexibility reduces physical strain and improves efficiency.
- Smooth Maneuverability: The compact design and high-efficiency pumps make it easy to navigate through narrow aisles.
- Durable Forks: The welded forks provide a long-lasting and low-cost solution for daily pallet handling.
Safety and Compliance Standards
The Toyolift stacker includes a metal grid that protects the operator from the lift chains during use. It also features a safety wheel guard and a dedicated brake system to ensure secure operation. The equipment is CE certified and conforms to the EN ISO3691-5 standard. It adheres to the 2006/42/EC directive to meet the high safety requirements expected in professional logistics environments.
FAQ
Q: What is the maximum weight capacity for the SDJ series?
The SDJ series offers three different models to suit your needs. You can choose from load capacities of 500kg, 1000kg, or 1500kg.
Q: Can I use these stackers with standard European pallets?
Yes. These stackers are specifically designed for European pallets measuring 550/580mm by 1100/1150mm. The fixed forks ensure a secure fit for these dimensions.
Q: How do I operate the lifting function in the stacker?
The stacker features a dual-control lifting system. You can use either the hand lever or the foot pedal to raise the load. This design helps to reduce operator fatigue during long shifts.
Q: What is the maximum height the stacker can reach?
The maximum lift height varies by model. Certain variants can reach up to 3000mm while others are optimized for 1600mm. You should check the technical table to find the model that fits your warehouse shelf height.
Q: Is this equipment compliant with international safety regulations?
The SDJ series is CE certified and conforms to the EN ISO3691-5 standard. It also meets the requirements of the 2006/42/EC directive. These certifications ensure the product is suitable for professional use in logistics environments.
