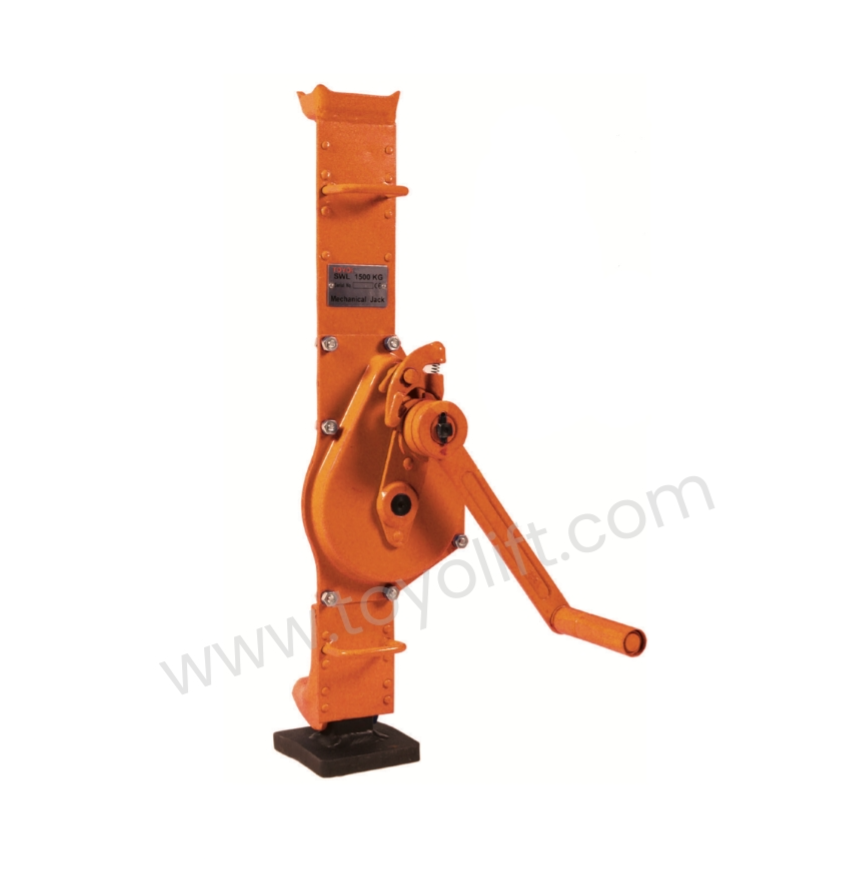

Toyolift Rack Jack
Durable Manual Lifting
What is a Rack Jack?
The RACK JACK (Vérin de levage manuel, Model: TL-RJ) is a manual lifting device characterized by its top quality steel structure, which is designed to ensure high safety and durability. It is also equipped with a collapsible handle to facilitate easy storage, operation, and maintenance.
| Model | TL-RJ015 | TL-RJ030 | TL-RJ050 | TL-RJ100 | |
|---|---|---|---|---|---|
| Capacity | (Ton) | 1.5 | 3 | 5 | 10 |
| Tested Load | (Ton) | 2.25 | 4.5 | 7.5 | 15 |
| Effort required to lift max. load | (N) | 300 | 350 | 400 | 580 |

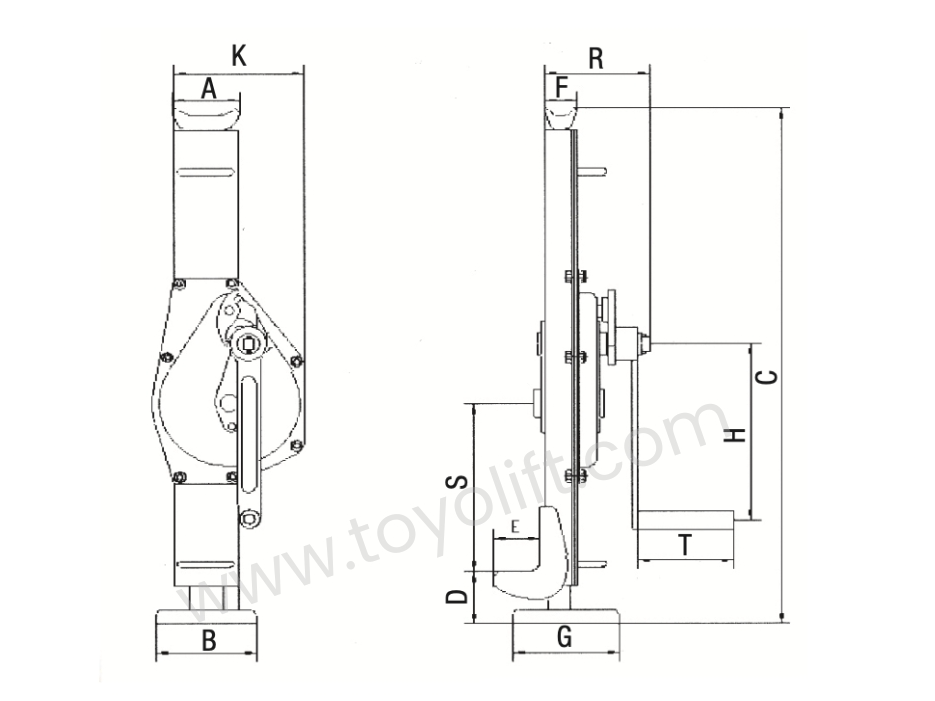

| (Dimensions mm) | A | 77 | 83 | 105 | 120 |
| B | 100 | 130 | 145 | 145 | |
| C | 605-905 | 715-1085 | 730-1080 | 795-1160 | |
| D | 55-355 | 60-430 | 70-420 | 83-448 | |
| E | 55 | 60 | 70 | 80 | |
| F | 46 | 45 | 68 | 73 | |
| G | 110 | 135 | 170 | 170 | |
| H | 225 | 285 | 285 | 330 | |
| K | 121 | 200 | 190 | 252 | |
| R | 119 | 140 | 155 | 185 | |
| S | 185 | 230 | 220 | 220 | |
| T | 126 | 126 | 126 | 255 | |
| Net weight | (Kg) | 10.7 | 21.3 | 27 | 47 |
Key Performance Features:
- Construction: The Rack Jack is built with a top quality steel structure designed to ensure both high safety and durability.
- Usability: It features a collapsible handle to allow for easy storage, operation, and maintenance.
Safety and Compliance Standards
The safety and compliance standard for the RACK JACK is EN 1494:2000. This standard is applicable across all models of the Rack Jack, which range in capacity from 1.5 Ton to 10 Ton.
FAQ
Q: What is the RACK JACK, and what models are available?
The RACK JACK (Vérin de levage manuel, Model: TL-RJ) is a manual lifting device,. It is available in four standard capacity models: TL-RJ015 (1.5 Ton), TL-RJ030 (3 Ton), TL-RJ050 (5 Ton), and TL-RJ100 (10 Ton).
Q: What is the construction and safety design of the TL-RJ Rack Jack?
he Rack Jack features a top quality steel structure engineered to ensure high safety and durability. For ease of use, it is designed with a collapsible handle which assists in simple storage, operation, and maintenance.
Q: What are the maximum load capacities and tested loads?
The capacity of the Rack Jack models ranges from 1.5 Ton to 10 Ton. The corresponding tested loads are significantly higher.
Q: What safety standard does the RACK JACK comply with?
The RACK JACK (Model: TL-RJ) complies with the safety standard EN 1494:2000.
