Toyolift Super Beam Clamp
Lightweight Design for Heavy-Duty Performance
What is a Super Beam Clamp?
The Super Clamp also known as the TOYOLIFT Universal Beam Clamp, Model No. TLC, is a specialized lifting and pulling component designed for high-versatility applications.

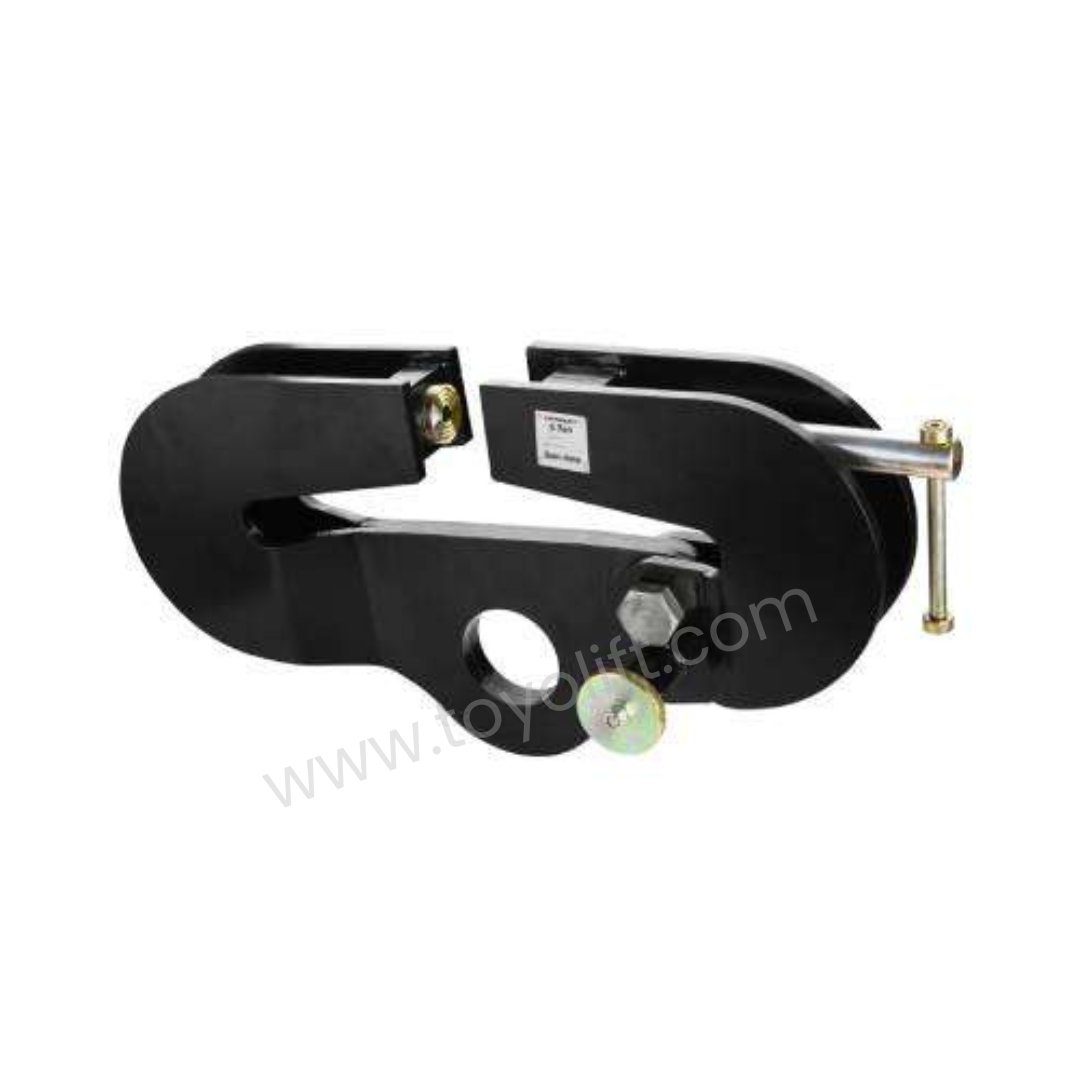

Super Beam Clamp
Click the image to Zoom
| Model | WLL Tonnes |
A mm |
B mm |
C mm |
D mm |
E mm |
F mm |
G mm |
H mm |
Beam Width mm |
N.W (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TLC | 3 | 550 | 237 | 28 | 60 | 32 | 133 | 20 | 20 | 125-204 | 14.7 |
| TLC | 5 | 615 | 275 | 37.5 | 75 | 32 | 157 | 24 | 44 | 125-305 | 28.3 |
| TLC | 10 | 615 | 275 | 35 | 80 | 32 | 225 | 44 | 44 | 125-305 | 37.8 |
Key Performance Features:

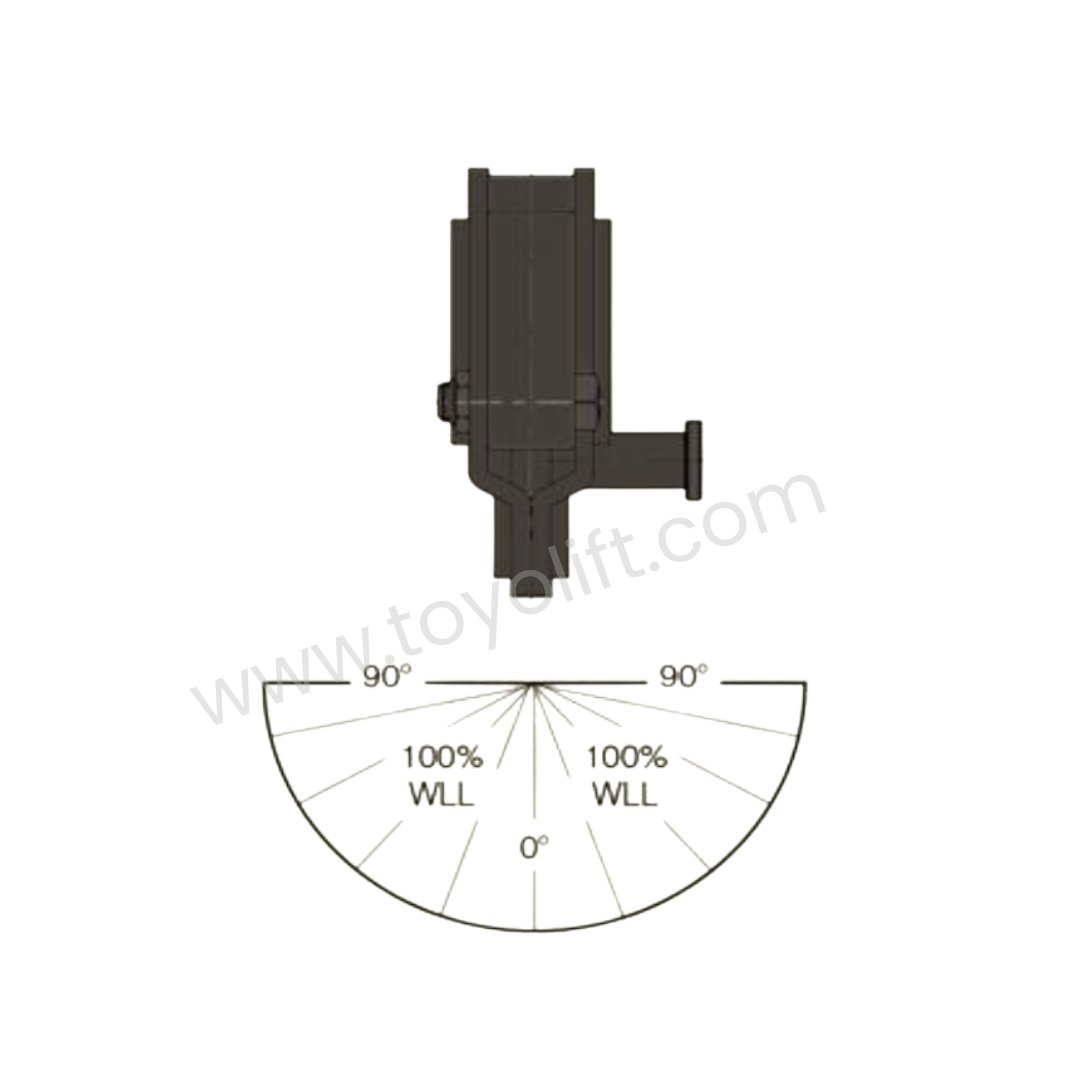

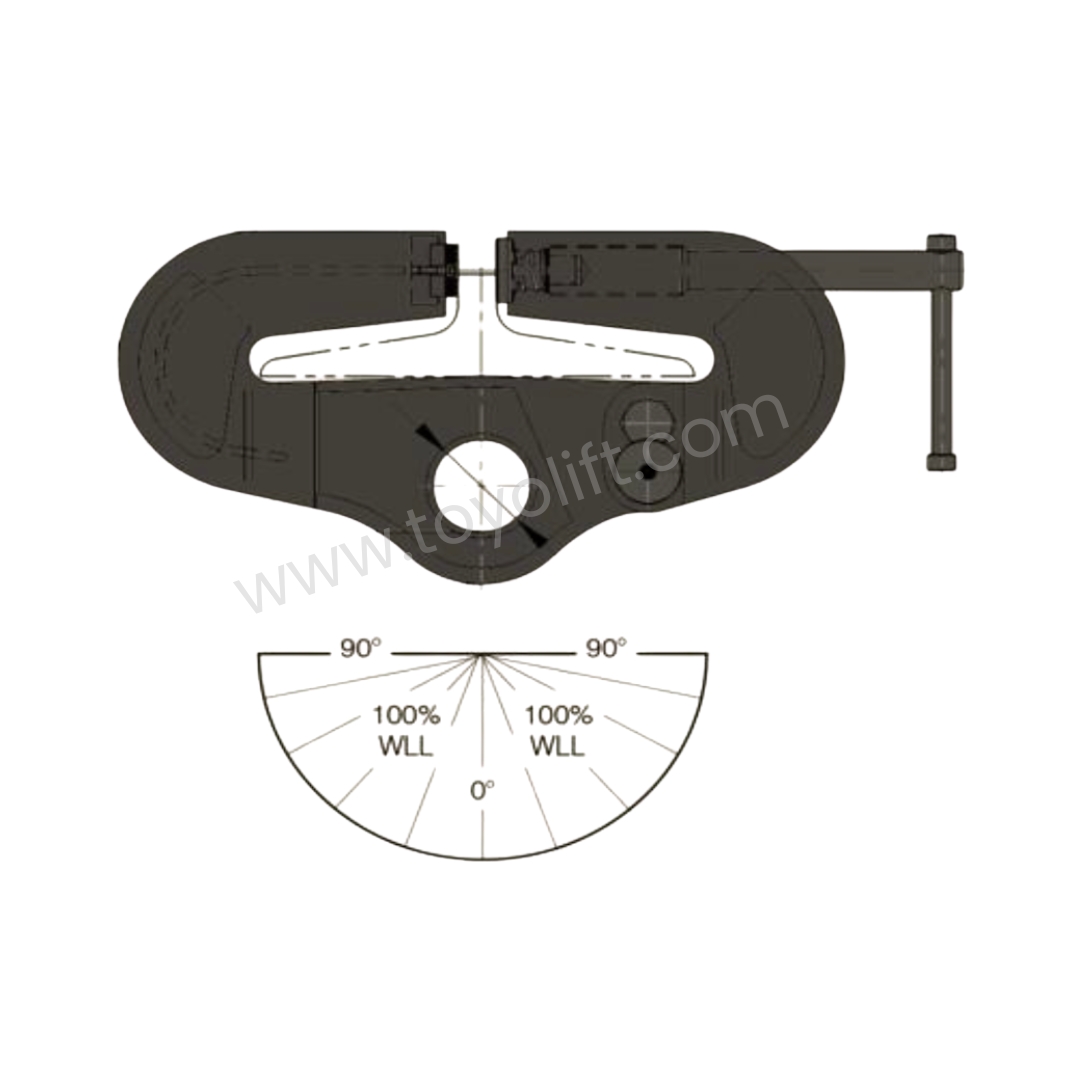

- Multi-Directional Loading at Full Capacity: Unlike conventional clamps, the TLC model is suitable for side load applications and can be loaded at any angle. It maintains 100% of its Working Load Limit (WLL) across all directions and lifting applications.
- Operational Efficiency: Because the clamp can handle angular loads securely, it eliminates the need for spreader beams in various lifting operations, saving time and equipment costs.
- Versatile Functionality: It is designed for pulling and lifting at angles across a beam and can also serve as a semi-permanent anchor point.
- Space-Saving Design: The unit features built-in suspension points specifically for a low headroom design, making it ideal for tight working spaces.
- Portable and Secure: The clamp utilizes a lightweight design (ranging from 14.7 kg to 37.8 kg depending on the model) for quick setup. Safety is further enhanced by an adjustable locking mechanism that ensures the clamp remains securely fastened to the beam.
Safety and Compliance Standards
The clamp has a 100% WLL rating at any angle and an adjustable locking mechanism. It’s available in three high-capacity versions: 3 Ton, 5 Ton, and 10 Ton. Each model is meticulously designed to maintain its structural integrity and safety rating regardless of the pull direction.
FAQ
Q: What sets the TOYOLIFT Universal Beam Clamp apart from conventional clamps?
The primary difference is its multi-directional capability. While conventional clamps are often limited to vertical use, the TLC model is specifically designed for side load applications and can be loaded at any angle. It maintains 100% of its Working Load Limit (WLL) in all directions, which effectively eliminates the need for spreader beams in many lifting operations.
Q: Can this clamp be used as a permanent fixture?
Yes, the Universal Beam Clamp is suitable for use as a semi-permanent anchor point, in addition to its primary functions of pulling and lifting at various angles across a beam.
Q: How secure is the attachment to the beam?
Safety is a priority in its design; the unit is fitted with an adjustable locking mechanism that ensures secure clamping to the beam during operation.
Q: Is the Universal Beam Clamp suitable for tight working spaces?
Yes. It features built-in suspension points designed specifically for low headroom applications. Additionally, its lightweight design (ranging from 14.7 kg to 37.8 kg depending on the model) allows for quick clamping and unclamping on-site.
Q: What weight capacities and beam widths are available?
The TOYOLIFT TLC series offers three main models based on capacity:
• 3 Ton (TLC 3): Fits beam widths of 125–204 mm.
• 5 Ton (TLC 5): Fits beam widths of 125–305 mm.
• 10 Ton (TLC 10): Fits beam widths of 125–305 mm.
Q: Does the lifting capacity decrease when pulling at an angle?
No. Unlike many other lifting components that require a "derating" (reduction in capacity) for angular loads, the Toyolift universal beam clamps can be used in all directions at 100% of the WLL.
