TOYOLIFT Electric Chain Hoist
Discover Unmatched Power and Precision for Industrial Lifting

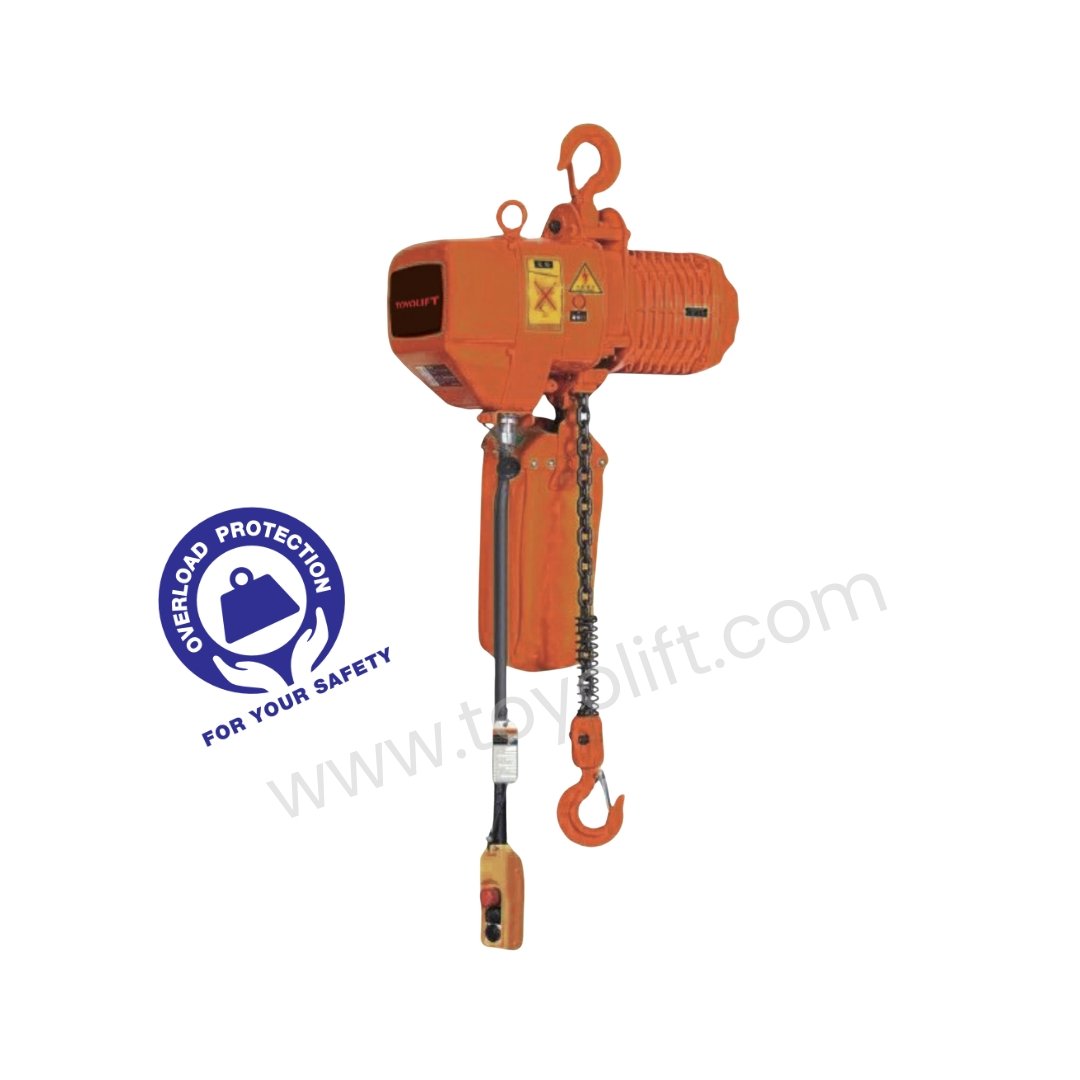

Electric Chain Hoist: High-Performance Lifting Solutions
When your operation demands reliable, heavy-duty material handling, TOYOLIFT Electric Chain Hoists (TL-SSDHL Model) deliver the performance and durability required. Engineered for efficiency and built to rigorous international standards, our electric hoists provide optimal vertical load movement in demanding environments.
| Capacity (Ton) | Hoist lifting motor (Up & Down) | Hoist Weight (Kg) | |||
|---|---|---|---|---|---|
| Lifting speed (M/Min) | Power (Kw) | Dia. of Chain | No. of Chain falls | ||
| 0.5 | 7.2 | 0.8 | Ø6.3 | 1 | 53 |
| 1 | 6.6 | 1.5 | Ø7.1 | 1 | 67 |
| 2 | 6.6 | 3.0 | Ø10.0 | 1 | 120 |
| 3 | 4.4 | 3.0 | Ø10.0 | 2 | 137 |
| 5 | 2.7 | 3.0 | Ø11.2 | 2 | 148 |
| 7.5 | 1.8 | 3.0 | Ø11.2 | 3 | 203 |
| 10 | 2.7 | 3.0x2 | Ø11.2 | 4 | 344 |
| 15 | 1.8 | 3.0x2 | Ø11.2 | 6 | 412 |
| 20 | 1.4 | 3.0x2 | Ø11.2 | 8 | 522 |
| 25 | 1.1 | 3.0x2 | Ø11.2 | 10 | 560 |
Electric Chain Hoist With Trolley (DPC-SSDHL Model)
Toyolift electric chain hoist (DPC-SSDHL Model) that comes with a trolley, is designed for superior functionality, available in a comprehensive range of capacities to meet diverse industry needs. It has horizontal and vertical load movements and is more capable than standard hoists.
| Capacity (Ton) | Power (Kw) | Trolley (Right & Left) | Chain Hoist (Up & Down) | Hoist & Trolley Weight (Kg) | |||
|---|---|---|---|---|---|---|---|
| Traveling Speed (M/Min) | Beam Width (mm) | Lifting Speed (M/Min) | No. of Chain Falls | Load Chain Dia. (mm) | |||
| 0.5 | 0.4 | 21 | 50-102 | 7.2 | 1 | Ø6.3 | 80 |
| 1 | 0.4 | 21 | 58-153 | 6.6 | 1 | Ø7.1 | 114 |
| 2 | 0.4 | 21 | 82-178 | 6.6 | 1 | Ø10.0 | 175 |
| 3 | 0.75 | 21 | 100-178 | 4.4 | 2 | Ø10.0 | 203 |
| 5 | 0.75 | 21 | 100-178 | 2.7 | 2 | Ø11.2 | 236 |
| 7.5 | 0.75 | 21 | 100-178 | 1.8 | 3 | Ø11.2 | 308 |
| 10 | 0.75 | 21 | 152-220 | 2.7 | 4 | Ø11.2 | 489 |
| 15 | 0.75 x 2 | 21 | 152-220 | 1.8 | 6 | Ø11.2 | 629 |
| 20 | 0.75 x 2 | 21 | 152-220 | 1.4 | 8 | Ø11.2 | 777 |
| 25 | 0.75 x 2 | 21 | 152-220 | 1.1 | 10 | Ø11.2 | 870 |

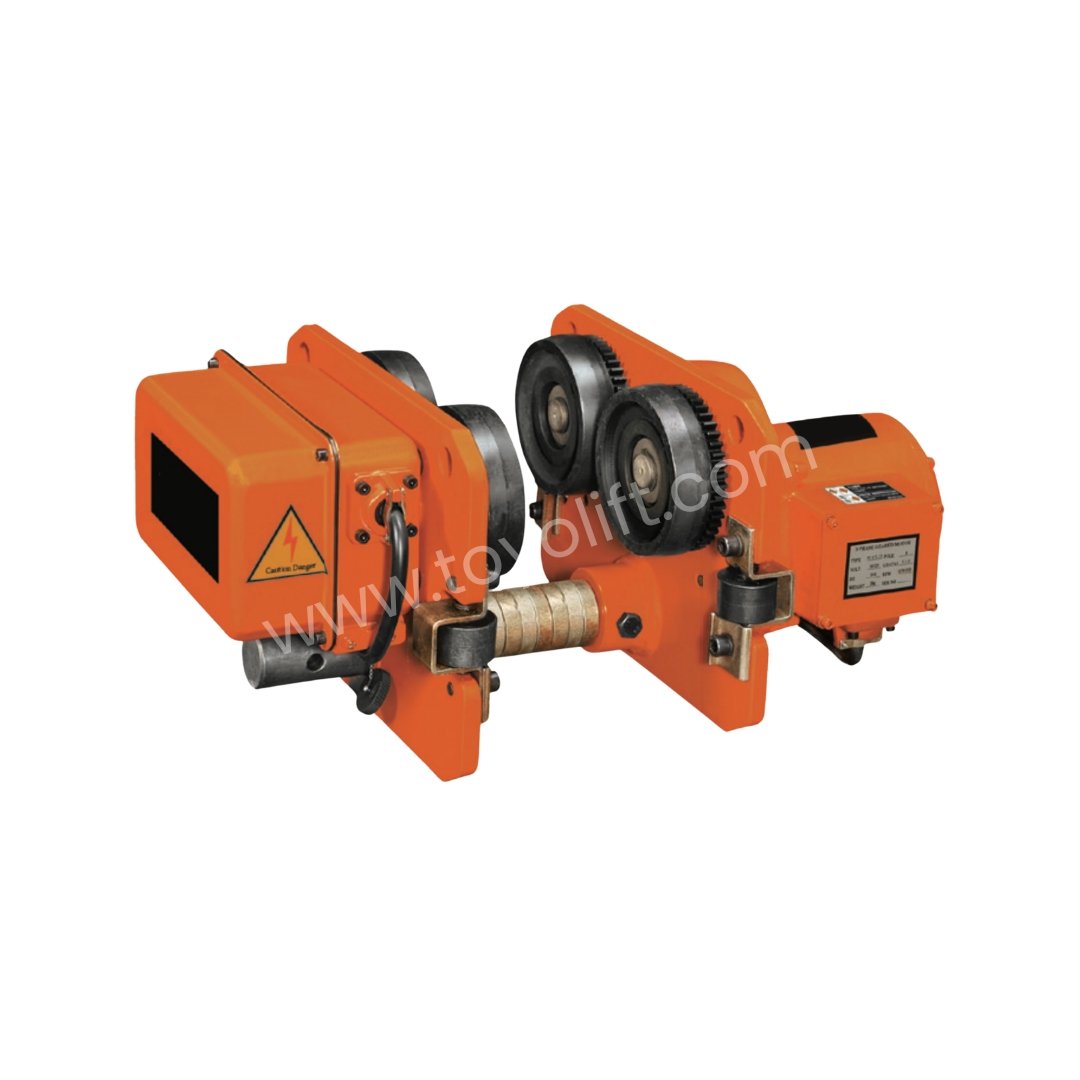

Electric Trolley (DPC-T Model)
The Toyolift electric trolley provides reliable and efficient horizontal load movement for demanding industrial material handling operations. It is available in a versatile range of capacities from 0.5 to 25 tons to ensure precision and safety across your lifting tasks.
| Capacity (Ton) | Power (Kw) | Beam Width (mm) | Traveling Speed (M/min) | Trolley Weight (Kg) |
|---|---|---|---|---|
| 0.5 | 0.4 | 50-102 | 21 | 30 |
| 1 | 0.4 | 58-153 | 21 | 47 |
| 2 | 0.4 | 82-178 | 21 | 55 |
| 3 | 0.75 | 100-178 | 21 | 66 |
| 5 | 0.75 | 100-178 | 21 | 88 |
| 7.5 | 0.75 | 100-178 | 21 | 105 |
| 10 | 0.75 | 152-220 | 21 | 145 |
| 15 | 0.75 x 2 | 152-220 | 21 | 217 |
| 20 | 0.75 x 2 | 152-220 | 21 | 255 |
| 25 | 0.75 x 2 | 152-220 | 21 | 310 |
Key Performance Features:
- Capacity Range: Available from 0.5 Ton up to 25 Ton capacity.
- Power Supply: Standard power specifications are 380V/415V, 3PH, 50/60Hz, 1440RPM.
- High-Grade Chain: Hoists are fitted with high grade 80 alloy load chain. This specialized chain is heat treated for superior tensile strength, resistance to wear, and shock-absorbing capabilities. It is recognizable by the T8 embossed mark.
- Motor Specifications: Hoist lifting motors (Up & Down) vary, with larger models requiring dual motors (e.g., 0.75 Kw x 2 for 15T, 20T, and 25T models).
Integrated Electric Chain Hoist with Trolley (DPC-SSDHL Model)
For applications requiring precise horizontal positioning, the DPC-SSDHL model integrates the electric chain hoist with an electric trolley.
- Capacities: Combined hoist and trolley units are available up to 25 Ton.
- Traveling Speed: The electric trolley (Right & Left) features a standard traveling speed of 21 M/Min across all listed capacities.
- Beam Compatibility: Trolley systems accommodate various beam widths, such as 50-102 mm for the 0.5 Ton model and 152-220 mm for capacities 10 Ton and above.
- Control Options: Wireless Remote Control for Electric Hoist is also available.
Safety and Compliance Standards
- Our electric lifting equipment is manufactured to ensure maximum safety and compliance, providing peace of mind for rigorous industrial use.
- The electric chain hoists meet the requirements of the standard BS EN 14492-1 and are in accordance with ASME requirements.
- IP54 for Hoist Body, IP65 for push button. IP55 & IP65 for whole hoist & trolley can be made on request
FAQ
Q: What are the available capacity ranges for Toyolift Electric Chain Hoists?
The Toyolift Electric Chain Hoists are available in capacities ranging from 0.5 Ton up to 25 Ton.
Q: What power supply is required for the Toyolift Electric Chain Hoist and Trolley systems?
The hoists and trolleys require a power supply of 380V/415V, 3PH, 50/60Hz, operating at 1440 RPM.
Q: What models of electric chain hoists and trolleys does Toyolift offer?
Toyolift offers several electric lifting models:
- TL-SSDHL Model: Electric Chain Hoist.
- DPC-SSDHL Model: Electric Chain Hoist with Trolley.
- DPC-T Model: Electric Trolley (Chariot porte palan électrique).
Q: What are the key lifting characteristics, such as speed and chain size?
Lifting speed and chain diameter depend on the capacity:
- Capacity 0.5 Ton: Lifting speed is 7.2 M/Min, using a chain diameter of Ø6.3 mm.
- Capacity 5 Ton: Lifting speed is 2.7 M/Min, using a chain diameter of Ø11.2 mm, with 2 chain falls.
- Capacity 25 Ton: Lifting speed is 1.1 M/Min, using a chain diameter of Ø11.2 mm, with 10 chain falls.
Q: Are wireless controls available for the electric hoists?
Yes, Wireless Remote Control for the Electric Hoist is also available.
Q: For the Electric Chain Hoist with Trolley (DPC-SSDHL Model), what is the traveling speed?
The Traveling Speed (M/Min) for the trolley (Right & Left) is 21 M/Min across all listed capacities (0.5 Ton to 25 Ton).
Q: What is the range of beam widths the Electric Chain Hoist with Trolley can accommodate?
The suitable beam width (mm) varies by capacity:
- 0.5 Ton: 50-102 mm.
- 5 Ton: 100-178 mm.
- 10 Ton to 25 Ton: 152-220 mm.
Q: Which safety standards do the Toyolift Electric Chain Hoists comply with?
The Electric Chain Hoists comply with BS EN 14492-1 and are in accordance with ASME requirements.
