Toyolift Snatch Block

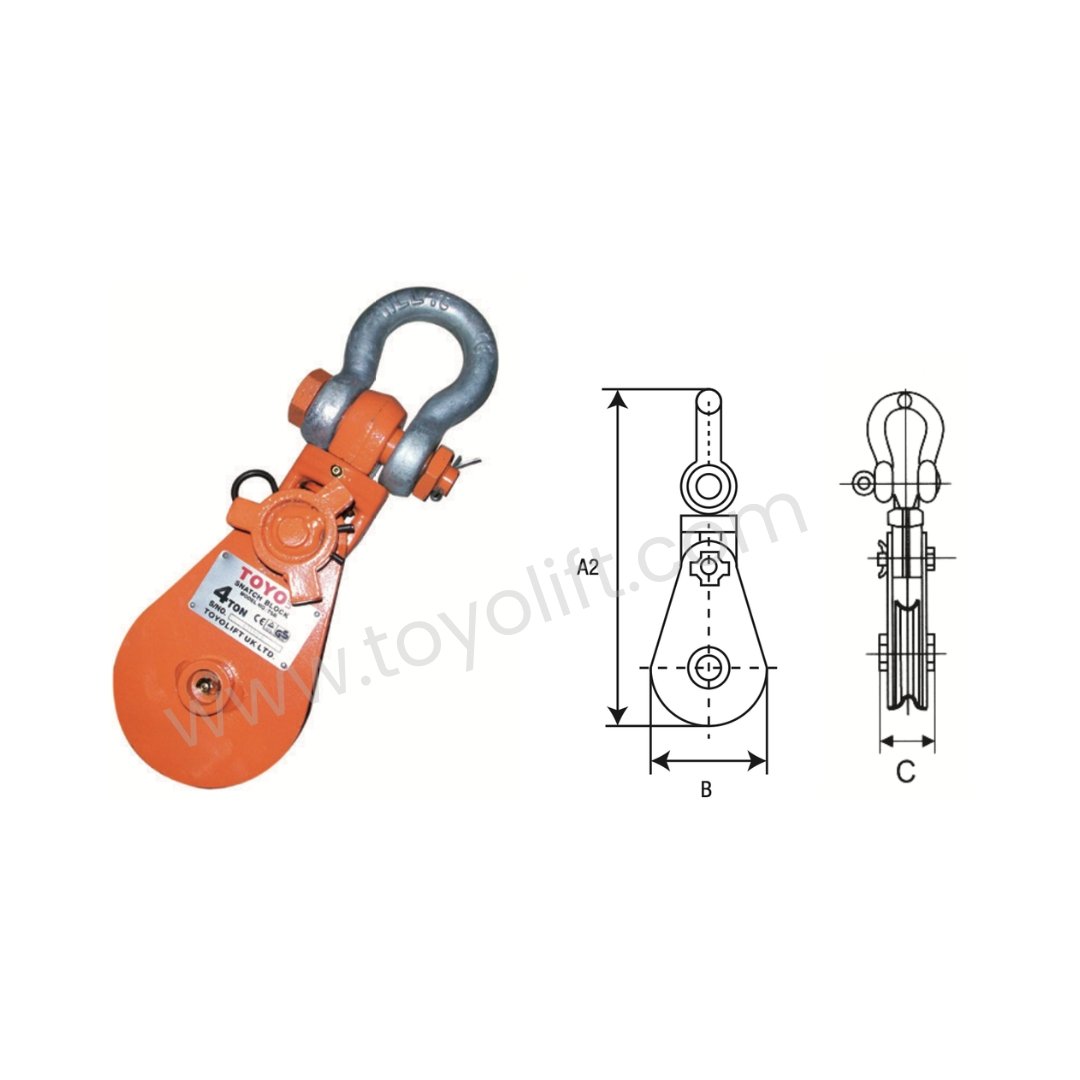

Wire Rope Snatch Block With Shackle

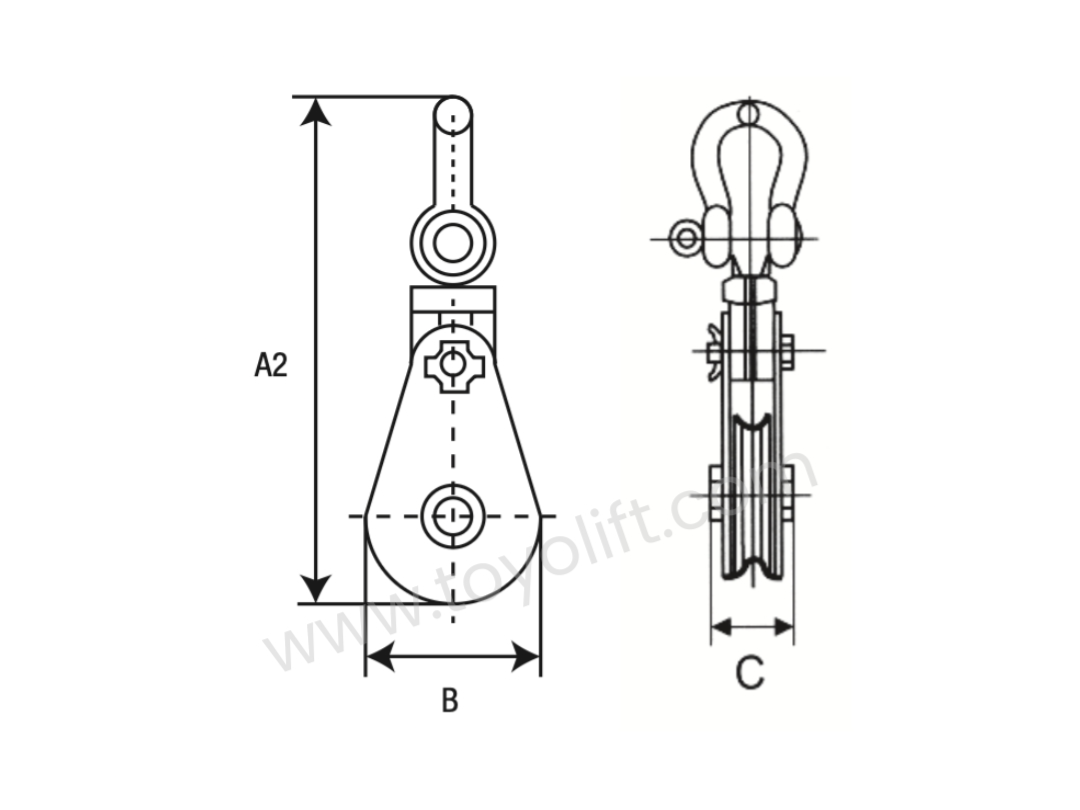

Model	Capacity (Ton)	Sheave Dia (mm)	A2 (mm)	B (mm)	C (mm)	Wire Rope (mm)	Net Weight (kg)
TL-SB020	2	75	286	82	70	7-9	4
TL-SB040	4	115	345	120	70	10-12	5.68
TL-SB080	8	150	475	160	93	20-22	14.4
TL-SB100	10	245	672	250	110	24-26	37.5
TL-SB120	12	250	679	260	115	24-26	37.5
TL-SB150	15	300	788	310	133	26-28	65
TL-SB220	22	355	952	365	140	28-32	90
TL-SB300	30	400	1126	415	155	32-35	135
TL-SB300	30	500	1256	514	162	32-35	210

Key Performance Features:

It utilizes a sheave (pulley wheel) with a diameter that varies depending on the capacity, ranging from 75 mm for the 2-ton model up to 400 mm for the 30-ton model.
It is designed to be used with specific wire rope diameters (e.g., 7–9 mm for the 2-ton model, 32–35 mm for the 30-ton model).

Safety and Compliance Standards

The safety and compliance standard for the WIRE ROPE SNATCH BLOCK WITH SHACKLE MODEL: TL-SB is EN 13155.

FAQ

The product is referred to as the WIRE ROPE SNATCH BLOCK WITH SHACKLE, with the model designation TL-SB.

The available models for the TL-SB Snatch Block range in capacity from 2 tons (Model TL-SB020) up to 30 tons (Models TL-SB300).

The WIRE ROPE SNATCH BLOCK WITH SHACKLE (Model: TL-SB) complies with EN 13157.

The appropriate wire rope diameter depends entirely on the specific Snatch Block model:

The smallest model (TL-SB020, 2 ton capacity) is designed for a wire rope diameter between 7 mm and 9 mm.
The largest models (TL-SB300, 30 ton capacity) are designed for a wire rope diameter between 32 mm and 35 mm.
