Toyolift Beam Clamp
Engineered for Grip, Built for Safety
What is a Beam Clamp?

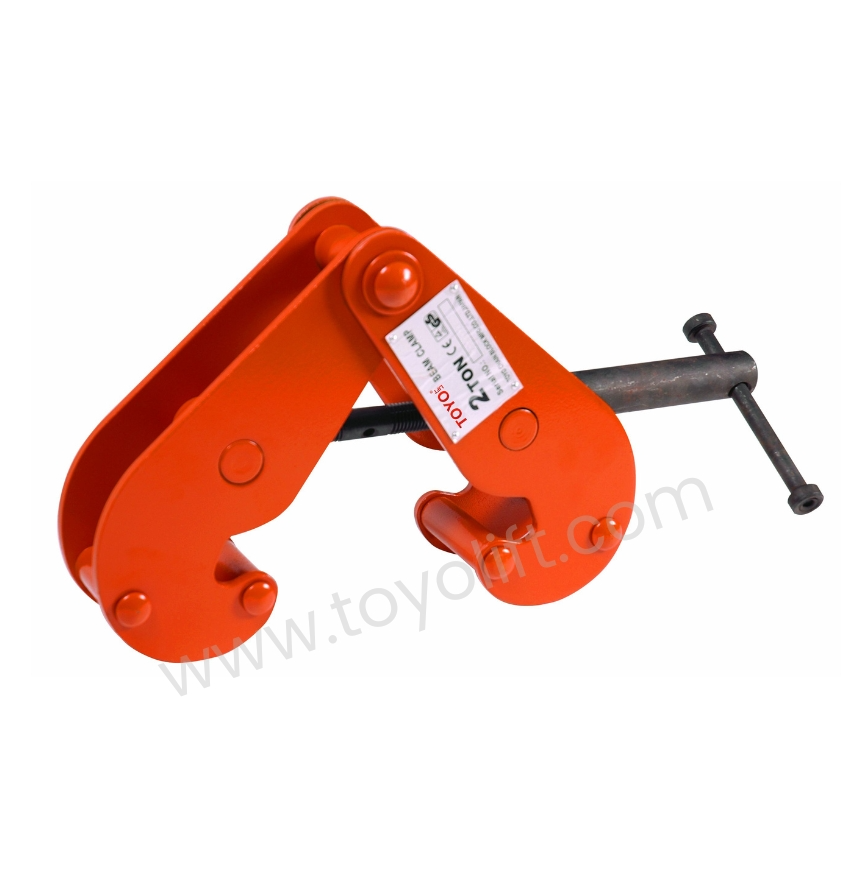

A Beam Clamp, such as the TOYOLIFT Model TL-BC, is a piece of rigging equipment specifically designed to provide a secure anchor point on structural steel I-beams or girders. These clamps, designated as BEAM CLAMP, allow for the temporary attachment of lifting equipment, by clamping onto the beam flange. The TOYOLIFT line includes various models, such as the TL-BC010, TL-BC020, TL-BC030, TL-BC050, and TL-BC100.

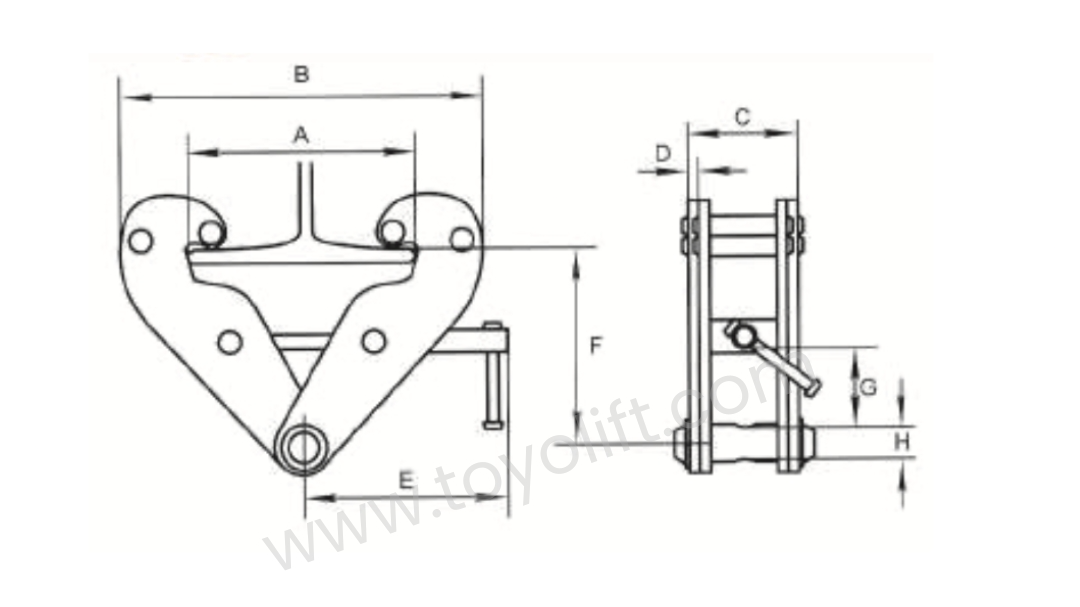

| Model | TL-BC010 | TL-BC020 | TL-BC030 | TL-BC050 | TL-BC100 |
|---|---|---|---|---|---|
| Rated Load (Ton) | 1 | 2 | 3 | 5 | 10 |
| Tested Load (Ton) | 1.5 | 3 | 4.5 | 7.5 | 15 |
| Flange width (mm) | 75-220 | 75-220 | 80-320 | 80-320 | 90-320 |
| Max. A (mm) | 260 | 260 | 354 | 354 | 365 |
| Min. B (mm) | 180 | 180 | 235 | 235 | 320 |
| Max. B (mm) | 260 | 360 | 490 | 490 | 505 |
| Dim. C (mm) | 64 | 74 | 103 | 110 | 120 |
| Dim. D (mm) | 5 | 6 | 8 | 10 | 12 |
| Dim. E (mm) | 215 | 215 | 260 | 260 | 280 |
| Max. F (mm) | 155 | 155 | 225 | 225 | 235 |
| Min. F (mm) | 102 | 102 | 140 | 140 | 170 |
| Min. G (mm) | 25 | 25 | 45 | 45 | 50 |
| Dim. H (mm) | 22 | 22 | 24 | 28 | 40 |
| Net Weight (Kg) | 4.5 | 5 | 10.5 | 11 | 16 |
Key Performance Features:
- Capacity Range: TOYOLIFT Beam Clamps offer a wide range of rated load capacities, from 1 Ton up to 10 Ton.
- Adjustable Flange Width: These clamps can accommodate various flange widths, with the largest model covering a range of 90-320 mm.
- Tested Load: Each model is subject to a tested load, which for the 10 Ton capacity model is 20 Ton.
Safety and Compliance Standards
The TOYOLIFT Beam Clamp (TL-BC Model) is manufactured in compliance with rigorous safety standards to ensure operational security. Specifically, these components adhere to the standard EN 13155. This certification confirms that the beam clamp is suitable for high-integrity lifting applications.
FAQ
Q: What is the primary purpose of the TOYOLIFT Beam Clamp?
The Beam Clamp (Model TL-BC) is a rigging component used to provide a secure and temporary anchorage point on structural steel I-beams or girders for lifting applications.
Q: What is the maximum lifting capacity available for these clamps?
The TOYOLIFT Beam Clamp models range in rated load capacity from 1 Ton up to 10 Ton (Model TL-BC100).
Q: What is the maximum tested load for the largest 10 Ton clamp?
The 10 Ton capacity model (TL-BC100) is subjected to a tested load of 20 Ton.
Q: What is the range of flange widths the largest clamp can accommodate?
The 10 Ton Beam Clamp (TL-BC100) can handle flange widths from 90 mm to 320 mm.
Q: Which safety standard does the TOYOLIFT Beam Clamp comply with?
The Beam Clamp is manufactured in adherence to the safety standard EN 13155.
Q: What is the specific model designation for this product line?
The TOYOLIFT Beam Clamp is designated by the model series TL-BC, with specific models including TL-BC010, TL-BC020, TL-BC030, TL-BC050, and TL-BC100.
