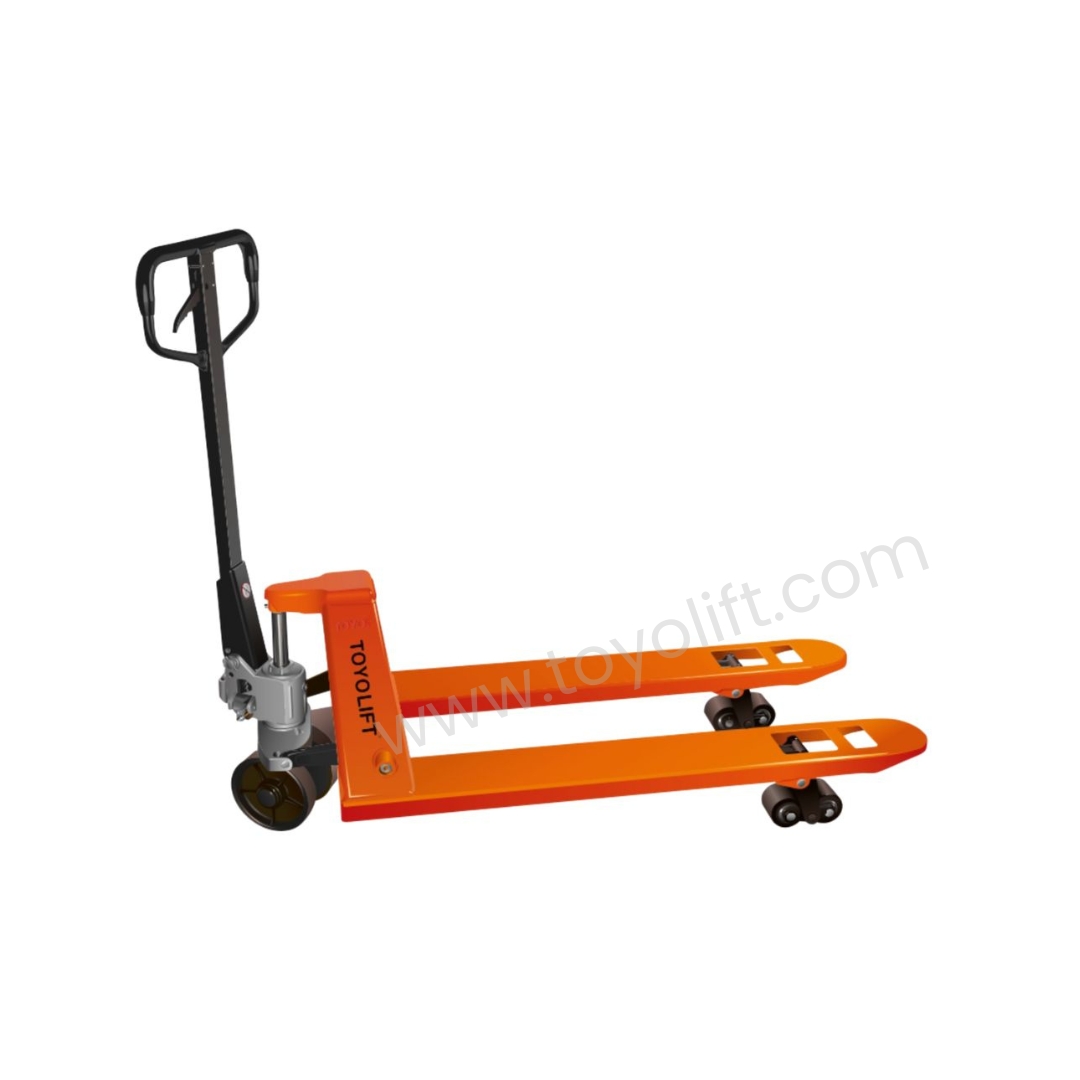

TOYOLIFT Hand Pallet Trolley
Moving effortlessly in every direction.
TOYOLIFT Hand Pallet Trolley: Essential Ground-Level Material Movement
When reliable and efficient movement of palletized goods is essential for your operation, the TOYOLIFT Hand Pallet Trolley (Transpalette Manuelle) offers a foundational material handling solution. These trolleys are engineered for efficiency and robust performance, adhering to the standard EN ISO 3691-5: 2014
The Hand Pallet Truck lineup includes models TL-BF25, TL-BF35, and TL-WB50, covering a range of load requirements. Detailed specifications are provided below:
| Model | TL-BF25 | TL-BF35 | TL-WB50 |
|---|---|---|---|
| Capacity (Ton) | 2.5 | 3.5 | 5 |
| Service weight (kg) | 70 | 90 | 105 |
| Steering wheel (mm) | Ø200 | Ø180 | Ø200 |
| Fork wheel (mm) | Ø80 | Ø75 | Ø84 |
| Max. lift height h3 (mm) | 185 | 175 | 195 |
| Lowered fork height h13 (mm) | 85 | 75 | 88 |
| Total height h14 (mm) | 1224 | 1214 | 1240 |
| Overall length l1 (mm) | 1533/1603 | 1533/1603 | 1533/1603 |
| Fork dimension s/e/t | 50/160/1150 | 50/160/1150 | 60/160/1150 |
| Distance between fork-arms b5 (mm) | 550 | 550 | 550 |
| Ground clearance m2 (mm) | 16 | 16 | 16 |
We prioritize safety and quality. The TOYOLIFT Hand Pallet Truck adheres to rigorous international standards, ensuring reliability and performance. The equipment complies with EN ISO 3691-5: 2014.
Features of the Hand Pallet Truck that makes it truly outstanding in the industry:
- Adjustable Pump Cap.
- Adjustable Straight Tappet.
- An Entry Roller is included to facilitate easy operation.
FAQ
Q: What models of Toyolift Hand Pallet Trucks are available?
A: The following models are listed: TL-BF25, TL-BF35, and TL-WB50.
Q: What is the maximum capacity of the available models?
A: The capacities vary by model:
- TL-BF25: 2.5 Ton.
- TL-BF35: 3.5 Ton.
- TL-WB50: 5 Ton.
Q: What is the service weight of the hand pallet trucks?
A: The service weights are 70 kg for the TL-BF25, 90 kg for the TL-BF35, and 105 kg for the TL-WB50.
Q: What are the key features of the Toyolift Hand Pallet Truck?
A: The models include several operational features:
- Adjustable pump cap.
- Adjustable straight tappet.
- Entry roller for easy operation.
Q: What are the maximum and minimum lift heights?
A: The dimensions vary slightly by model:
- Max. lift height (h3): 185 mm (TL-BF25), 175 mm (TL-BF35), or 195 mm (TL-WB50).
- Lowered fork height (h13): 85 mm (TL-BF25), 75 mm (TL-BF35), or 88 mm (TL-WB50).
Q: What are the dimensions of the forks?
A: The fork dimensions (s/e/t) are:
- 50/160/1150 for the TL-BF25 and TL-BF35.
- 60/160/1150 for the TL-WB50.
Q: What is the overall length and turning radius?
A: The overall length (l1) is 1533/1603 mm for all listed models (TL-BF25, TL-BF35, TL-WB50). The turning radius (Wa) is 1266/1336 mm for all listed models.
Q: What is the distance between the fork arms (outside)?
A: The distance between the fork arms outside (b5) is 550 mm for all models (TL-BF25, TL-BF35, TL-WB50).
Q: What wheel specifications are used?
A: The hand pallet trucks utilize the following wheel dimensions:
- Steering wheel: Ø200 mm (TL-BF25 and TL-WB50) or Ø180 mm (TL-BF35).
- Fork wheel: Ø80 mm (TL-BF25), Ø75 mm (TL-BF35), or Ø84 mm (TL-WB50).
- The ground clearance at the center of the wheel base (m2) is 16 mm for all listed models.
Q: What standard do the Toyolift Hand Pallet Trucks comply with?
A: The Hand Pallet Truck complies with Standard: EN ISO 3691-5: 2014.
