Toyolift Portable Gantry
Lightweight Design. Heavy-Duty Performance

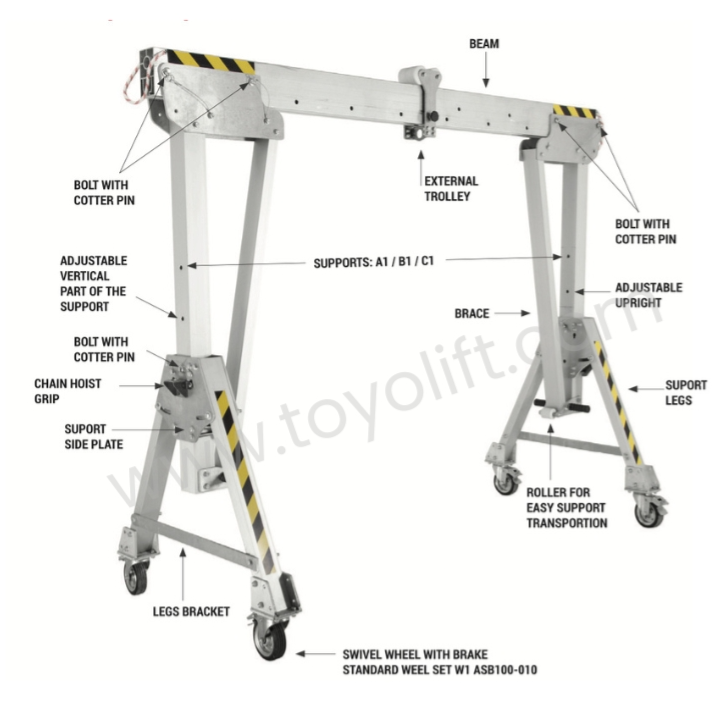

What is a Portable Gantry?
The Portable Gantry (specifically the Aluminium gantry crane, ASB series) is a complete, lightweight, fully customizable, and portable device designed for lifting loads up to its specific Working Load Limit (WLL). This apparatus is suitable for load lifting operations and can also be equipped with RUP50x-T devices for rescue purposes.
Key Performance Features:
- Ultimate Portability: Designed as a lightweight, portable device for rapid deployment and easy transport between jobsites.
- Fully Customizable: A highly adaptable lifting solution that can be tailored to meet your specific operational requirements and workspace constraints.
- High Capacity Range: Robust performance with a Working Load Limit (WLL) ranging from 1,500 kg to 3,500 kg.
- Versatile Span & Height: Features adjustable beam lengths from 2 to 7 meters and three distinct support height configurations (A1, B1, and C1).
- Dual-Purpose Safety: Engineered with specialized safety factors for both standard load lifting (2.1:1) and dedicated personal rescue operations (10:1).
- Protection: Protection for maximum five people at the same time.
Safety and Compliance Standards
The Aluminum Gantry Crane adheres to specific, demanding safety requirements for both lifting and rescue applications. It complies with the standards EN 795/A: 2012 and CEN/TS 16415/A: 2013. For lifting loads, the device maintains a safety factor of 2.1:1, while for personal rescue operations, it utilizes a higher safety factor of 10:1.

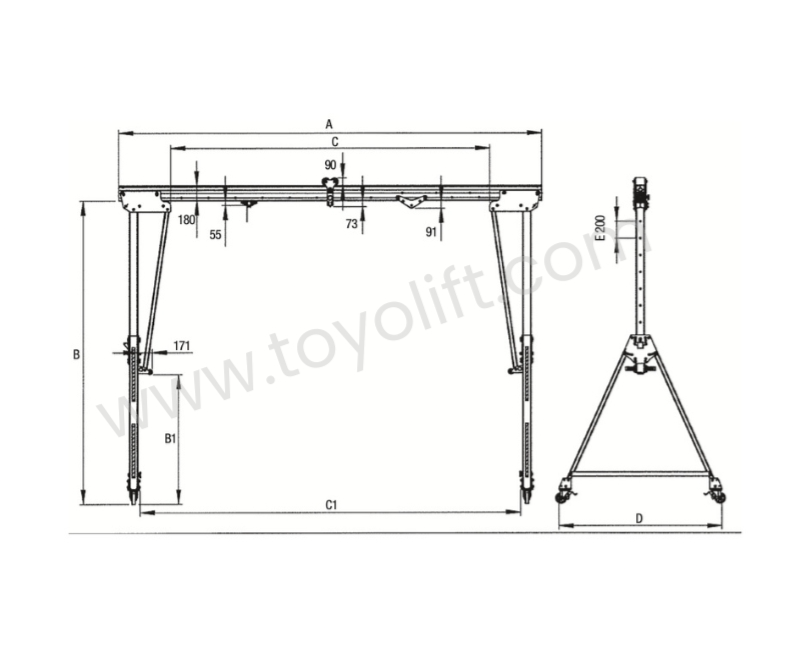

| "A" Total Beam length (mm) |
"C" Working span (mm) |
"C1" Bottom span (mm) |
Beam weight (kg) | A1 Support (one side 38.2kg) WLL (kg) |
B1 Support (one side 50.2kg) WLL (kg) |
C1 Support (one side 72kg) WLL (kg) |
|---|---|---|---|---|---|---|
| 2000 | 770 | 1496 | 26.7 | 3500 | 3000 | 3000 |
| 3000 | 1770 | 2496 | 40.1 | 3500 | 3000 | 3000 |
| 4000 | 2770 | 3496 | 53.4 | 3000 | 3000 | 3000 |
| 5000 | 3770 | 4496 | 66.5 | 2500 | 2500 | 2500 |
| 6000 | 4770 | 5496 | 80.1 | 2000 | 2000 | 2000 |
| 7000 | 5770 | 6496 | 93.5 | 1500 | 1500 | 1500 |
| Support weight (one side) (kg) | 38.2 | 50.2 | 71.8 | |||
| "B" - Support height (min-max) (mm) | 1594...2194 | 2207...3607 | 3230...5430 | |||
| "B1" Under roller height (min-max) (mm) | 34...634 | 141...1541 | 164...2364 | |||
| "D" - Legs spacing (mm) | 1115 | 1928 | 2834 | |||
| "E" - Support height increment (mm) | 200 | |||||
FAQ
Q: What is the maximum lifting capacity of the Aluminum Gantry Crane (ASB Series)?
The Working Load Limit (WLL) of the aluminum gantry crane ranges from 1500 kg up to 3500 kg, depending on the specific model and total beam length.
Q: What are the minimum and maximum beam lengths available for this portable gantry?
The beam length options for the ASB series range from 2 meters up to 7 meters.
Q: What are the different types of support heights offered for the gantry?
The gantry is available with three basic support height types, designated as A1, B1, and C1.
Q: What is the minimum and maximum support height (B) available for the A1 support type?
For the A1 support type, the minimum support height is 1594 mm and the maximum support height is 2194 mm.

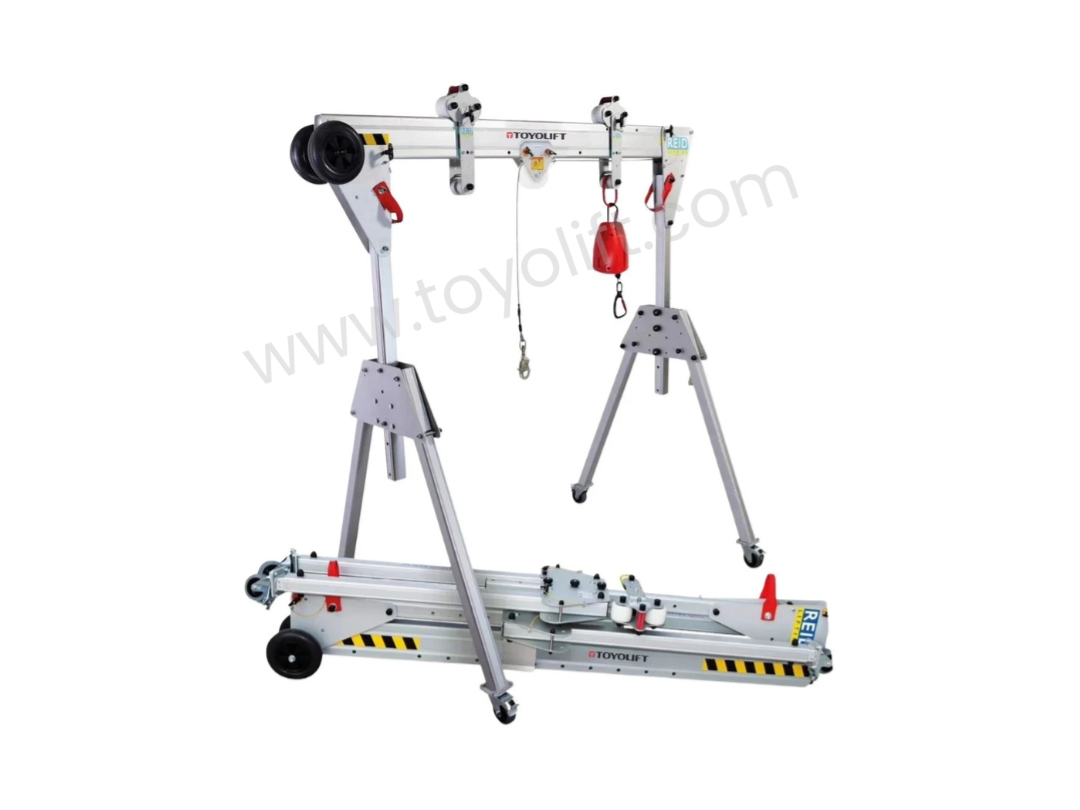

Q: Is this gantry suitable for rescue operations?
Yes, the gantry can be equipped with RUP50x-T rescue lifting devices and is certified for rescue purposes.
Q: What are the safety standards the aluminum gantry crane complies with?
The gantry complies with safety standards EN 795/A: 2012 and CEN/TS 16415/A: 2013.
Q: What safety factor is applied when using the gantry for standard load lifting?
The safety factor used for lifting loads is 2.1:1.
Q: Is the assembly process complicated or does it require specialized tools?
Assembly is designed to be fast and requires no additional tools, as it uses a bolt with a cotter pin.
