Toyolift Horizontal Lifting Clamp
Precision Handling for Every Heavy Load
What is a Horizontal Lifting Clamp?
A Horizontal Lifting Clamp, identified by the model series TL-HC, is a rigging tool specifically engineered for lifting and handling materials, such as plates, in a flat or horizontal position. These clamps are typically rated and used in pairs to ensure the stability and safe distribution of the load. The TL-HC series offers various capacities, with models capable of lifting loads up to 10 Ton per pair.
| Model | Rated capacity (Ton /pair) |
Test load (Ton /pair) |
Jaw Opening (mm) |
Dimensions (mm) | Net weight (Kg/Pair) |
||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||||
| TL-HC015 | 1.5 | 3 | 0-25 | 126 | 165 | 50 | 42 | 22 | 5 |
| TL-HC020 | 2 | 4 | 0-30 | 148 | 205 | 65 | 48 | 25 | 7 |
| TL-HC030 | 3 | 6 | 0-30 | 155 | 206 | 65 | 48 | 25 | 8 |
| TL-HC004 | 4 | 8 | 0-40 | 172 | 245 | 68 | 58 | 30 | 10 |
| TL-HC060 | 6 | 12 | 0-45 | 180 | 245 | 70 | 58 | 30 | 12 |
| TL-HC 100 | 10 | 20 | 0-55 | 180 | 260 | 74 | 58 | 30 | 15 |
Key Performance Features:
- Capacity Rating: These clamps are rated for capacities up to 10 Ton per pair (Model TL-HC100).
- Tested Load: The tested load for these clamps is twice the rated capacity; for example, the 10 Ton/pair clamp is tested at 20 Ton per pair.
- Jaw Opening: The maximum jaw opening size available is 0-55 mm.
Safety and Compliance Standards
The TOYOLIFT Horizontal Lifting Clamp (TL-HC Model) is manufactured to conform to critical European safety regulations for non-fixed load lifting attachments. The standards governing the production of the TL-HC clamp series are consistently reported to be in accordance with EN 13155.
FAQ
Q: What is the primary function of the TL-HC clamp?
The Horizontal Lifting Clamp (Model TL-HC) is a rigging tool specifically designed for lifting and handling materials, such as plates, in a flat or horizontal position.
Q: What is the maximum rated load capacity for the TL-HC series?
The largest model in the TL-HC series is rated for a capacity up to 10 Ton per pair (Model TL-HC100).
Q: What is the maximum jaw opening size available?
The maximum jaw opening size on the TL-HC models is 0-55 mm.
Q: What is the tested load requirement for these clamps?
These clamps are tested at a load that is twice their rated capacity; for example, the 10 Ton clamp is subjected to a test load of 20 Ton per pair.

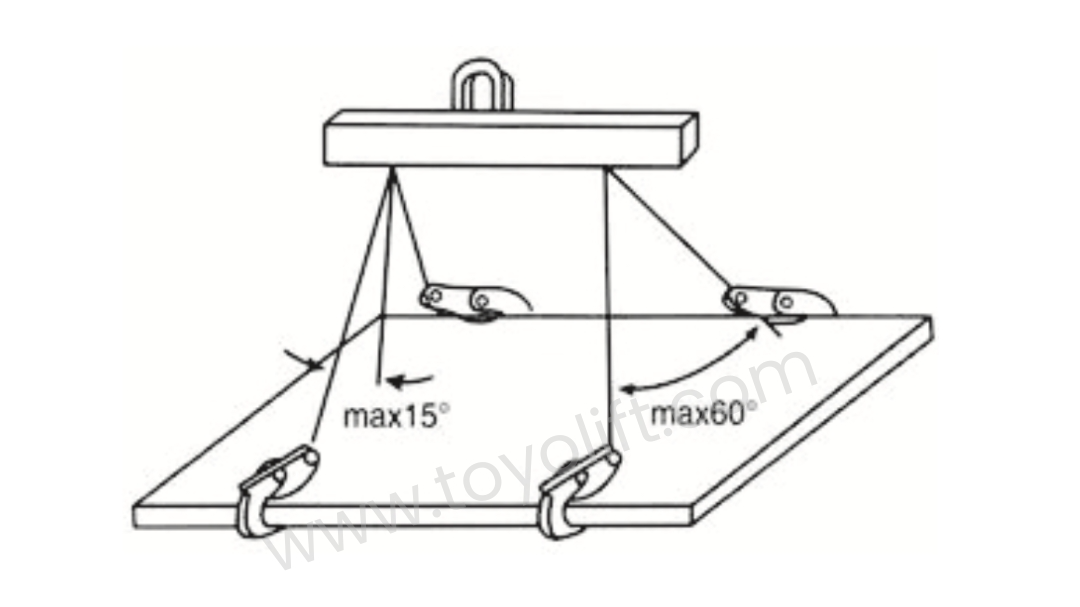

Q: How should I use the TL-HC clamps safely?
Horizontal lifting clamps are typically rated and must be used in pairs to ensure the stability and safe distribution of the load during lifting.
Q: Which key safety standard does the TL-HC clamp adhere to?
The Horizontal Lifting Clamp series is manufactured in accordance with the safety standard EN 13155.
