Toyolift Pipe Lifting Clamp
Reliable Handling for Every Horizontal Challenge
What is a Pipe Lifting Clamp?
The Horizontal Pipe Lifting Clamp, designated by the model series TL-PLC, is a specialized device designed for securely lifting pipes or similar cylindrical objects in a horizontal orientation. These clamps are supplied with a Shackle to facilitate connection to lifting machinery and are designed to lift various capacities, with models available that can handle loads up to 16 Ton per pair.
| Model | Capacity per pair (Ton) |
Jaw opening (R) (mm) |

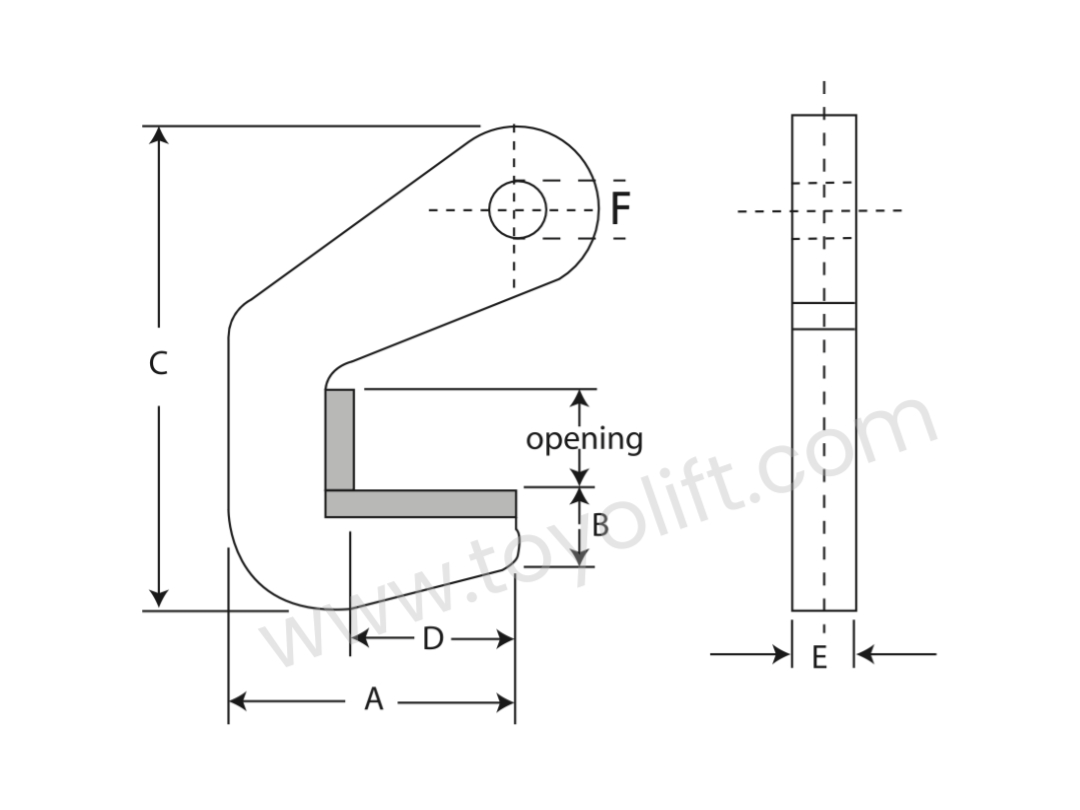

Dimensions (mm) |
Weight (Kg) |
|||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||||
| TL-PLC015 | 1.5 | 40 | 125 | 30 | 220 | 70 | 35 | 27 | 2 |
| TL-PLC030 | 3 | 40 | 140 | 32 | 228 | 70 | 35 | 27 | 2.9 |
| TL-PLC040 | 4 | 50 | 145 | 32 | 228 | 70 | 40 | 30 | 4 |
| TL-PLC060 | 6 | 50 | 150 | 35 | 232 | 70 | 40 | 30 | 5 |
| TL-PLC080 | 8 | 70 | 155 | 35 | 260 | 70 | 40 | 30 | 6.7 |
| TL-PLC120 | 12 | 70 | 175 | 35 | 322 | 70 | 45 | 33 | 10 |
| TL-PLC160 | 16 | 70 | 175 | 35 | 322 | 70 | 55 | 40 | 13 |
Key Performance Features:
- Lifting Capacity: The clamps are available with rated capacities ranging from 1.5 Ton up to 16 Ton per pair.
- Jaw Opening: The maximum jaw opening size is 70 mm, allowing the clamp to fit around various pipe diameters.
- Model Availability: The product line includes models such as the TL-PLC015, TL-PLC080, and TL-PLC160, providing options for different load requirements.
- Included Hardware: These lifting clamps are Supplied with Shackle as standard for ready connection to lifting systems.
Safety and Compliance Standards
The Horizontal Pipe Lifting Clamp, TL-PLC is manufactured in accordance with EN 13155. This suggests a consistent adherence to European standards for non-fixed load lifting attachments.
FAQ
Q: What is the primary function of the TL-PLC clamp?
The Horizontal Pipe Lifting Clamp (Model TL-PLC) is a specialized device designed for securely lifting pipes or similar cylindrical objects while maintaining a horizontal orientation.
Q: What is the maximum rated load capacity available for this clamp series?
These clamps offer rated capacities starting from 1.5 Ton and going up to 16 Ton per pair (Model TL-PLC160).
Q: What is the largest jaw opening size on the TL-PLC clamps?
The maximum jaw opening size available for the TL-PLC clamps is 70 mm.
Q: Does this clamp come with any connecting hardware?
Yes, the Horizontal Pipe Lifting Clamps are Supplied with Shackle as standard, allowing for immediate connection to a lifting system.
Q: What are some of the model numbers in the TL-PLC series?
Specific models include the TL-PLC015 (1.5 Ton capacity), TL-PLC080 (8 Ton capacity), and TL-PLC160 (16 Ton capacity).
