Toyolift Plate Lifting Clamp
Reliable Handling for Every Horizontal Challenge
What is a Plate Lifting Clamp?
The Horizontal Plate Lifting Clamp, identified by the model series TL-FHX, is a component specifically designed for the secure lifting of plates (such as sheet metal or steel plates) while maintaining a horizontal orientation. These clamps are typically used in pairs or sets to ensure the load remains level and stable during handling. The TL-FHX series offers a range of capacities, with models capable of handling loads up to 10 Ton per pair.
| TYPE | Capacity per pair (Ton) |
Jaw opening (mm) |
Dimensions (mm) |
Weight (Kg) |
|||||
|---|---|---|---|---|---|---|---|---|---|

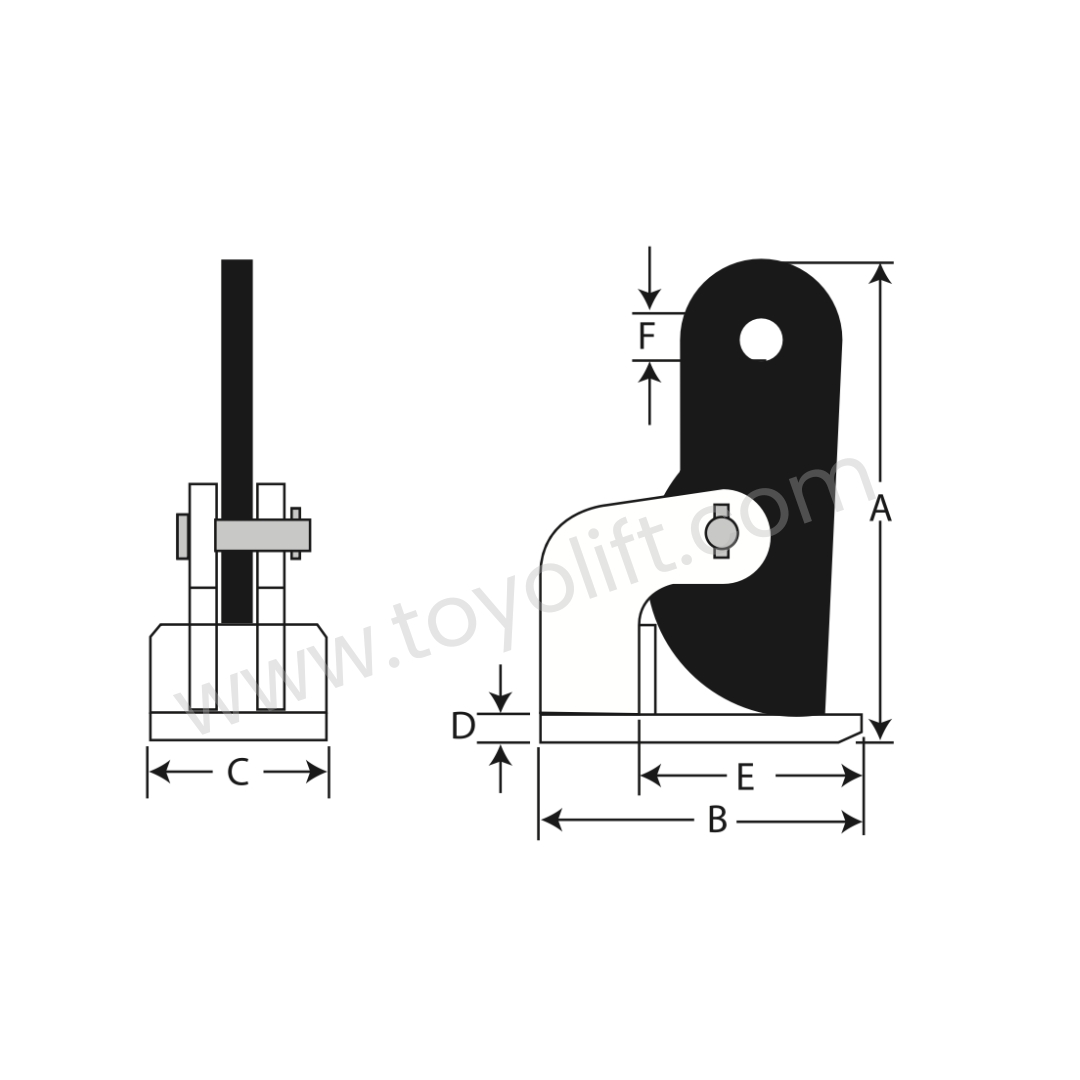

| A | B | C | D | E | F | ||||
| TL-FHX010 | 1 | 0-60 | 210 | 165 | 80 | 12 | 110 | 25 | 6 |
| TL-FHX015 | 1.5 | 0-60 | 285 | 180 | 80 | 14 | 120 | 25 | 6.5 |
| TL-FHX020 | 2 | 0-60 | 285 | 180 | 80 | 15 | 120 | 25 | 7.5 |
| TL-FHX030 | 3 | 0-60 | 303 | 220 | 90 | 18 | 145 | 30 | 10 |
| TL-FHX050 | 5 | 0-60 | 309 | 220 | 110 | 25 | 135 | 30 | 15.5 |
| TL-FHX100 | 10 | 0-60 | 330 | 225 | 110 | 25 | 140 | 40 | 23 |
Key Performance Features:
- Capacity Range: The models offer rated capacities ranging from 1 Ton up to 10 Ton per pair (TL-FHX100).
- Jaw Opening: The clamp features a consistent jaw opening range of 0-60 mm across all listed models in the series.
- Model Identification: The product line includes models such as TL-FHX010, TL-FHX050, and TL-FHX100, corresponding to their lifting capacity.
Safety and Compliance Standards
The TOYOLIFT Horizontal Plate Lifting Clamp is manufactured to meet specific, high safety requirements for non-fixed load lifting attachments. The production of the TL-FHX clamp series is done in accordance with the standard EN 13155. This compliance ensures the clamps are tested and certified for safe and reliable lifting operations.
FAQ
Q: What is the primary purpose of the TL-FHX clamp?
The Horizontal Plate Lifting Clamp (Model TL-FHX) is designed for the secure lifting and handling of plates (like sheet metal or steel plates) while keeping them in a horizontal orientation.
Q: What is the range of rated capacities available for these clamps?
The TL-FHX series offers rated capacities starting at 1 Ton up to 10 Ton per pair (Model TL-FHX100).
Q: What is the standard jaw opening size for the TL-FHX models?
All listed models in the TL-FHX series feature a consistent jaw opening range of 0-60 mm.
Q: How should these clamps typically be used for lifting?

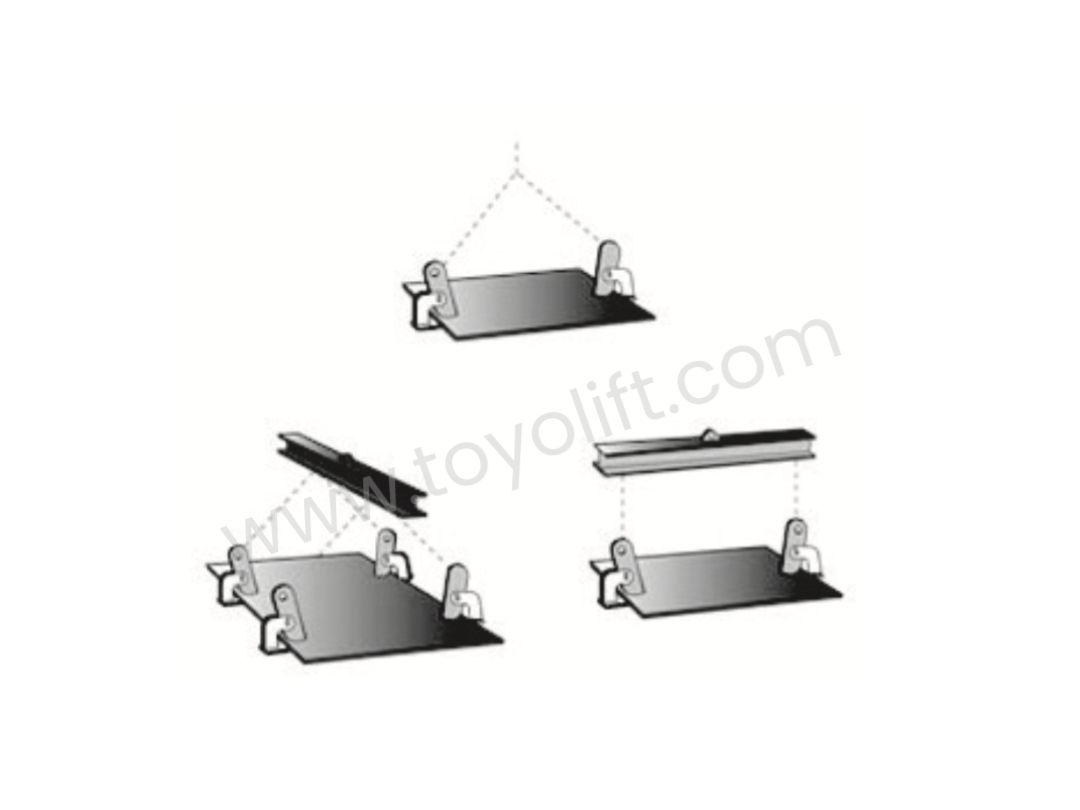

Horizontal plate clamps are generally used in pairs or sets to ensure stability and even load distribution when lifting plates.
Q: Which key safety standard does the Horizontal Plate Lifting Clamp adhere to?
The TL-FHX clamp series is manufactured in accordance with the safety standard EN 13155.
Q: What are some examples of model numbers in this series?
Specific models include the TL-FHX010 (1 Ton capacity), TL-FHX050 (5 Ton capacity), and TL-FHX100 (10 Ton capacity).
