Toyolift Screw Pin Shackles
Explore The Power of Screw Pin Shackles

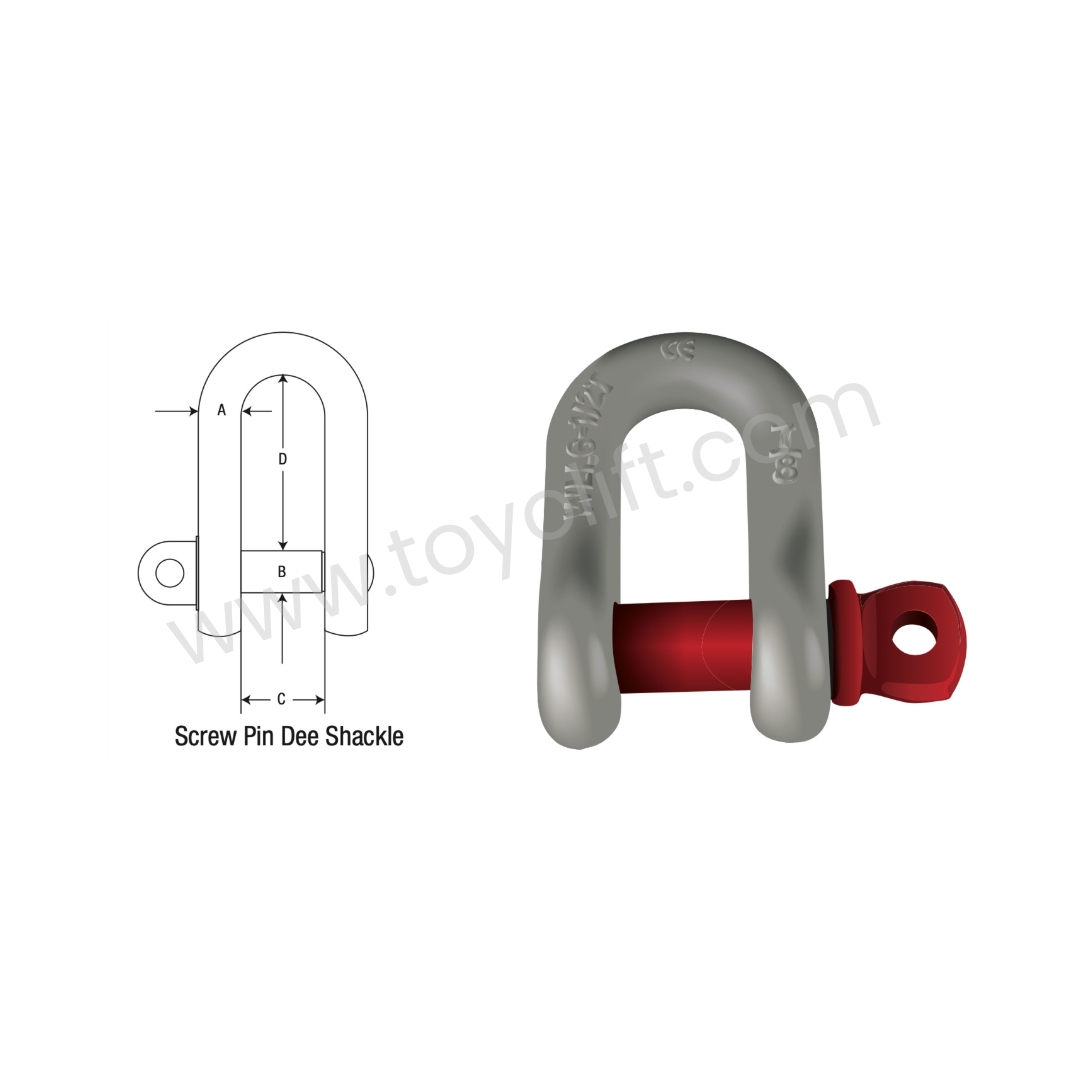

What is a screw pin D shackle?
TOYOLIFT D-Shackles (TL-210) provide the critical link required for secure and reliable material handling, lifting, and rigging solutions. Built from forged alloy steel, these shackles are designed for extra strength and manufactured to rigorous international standards.

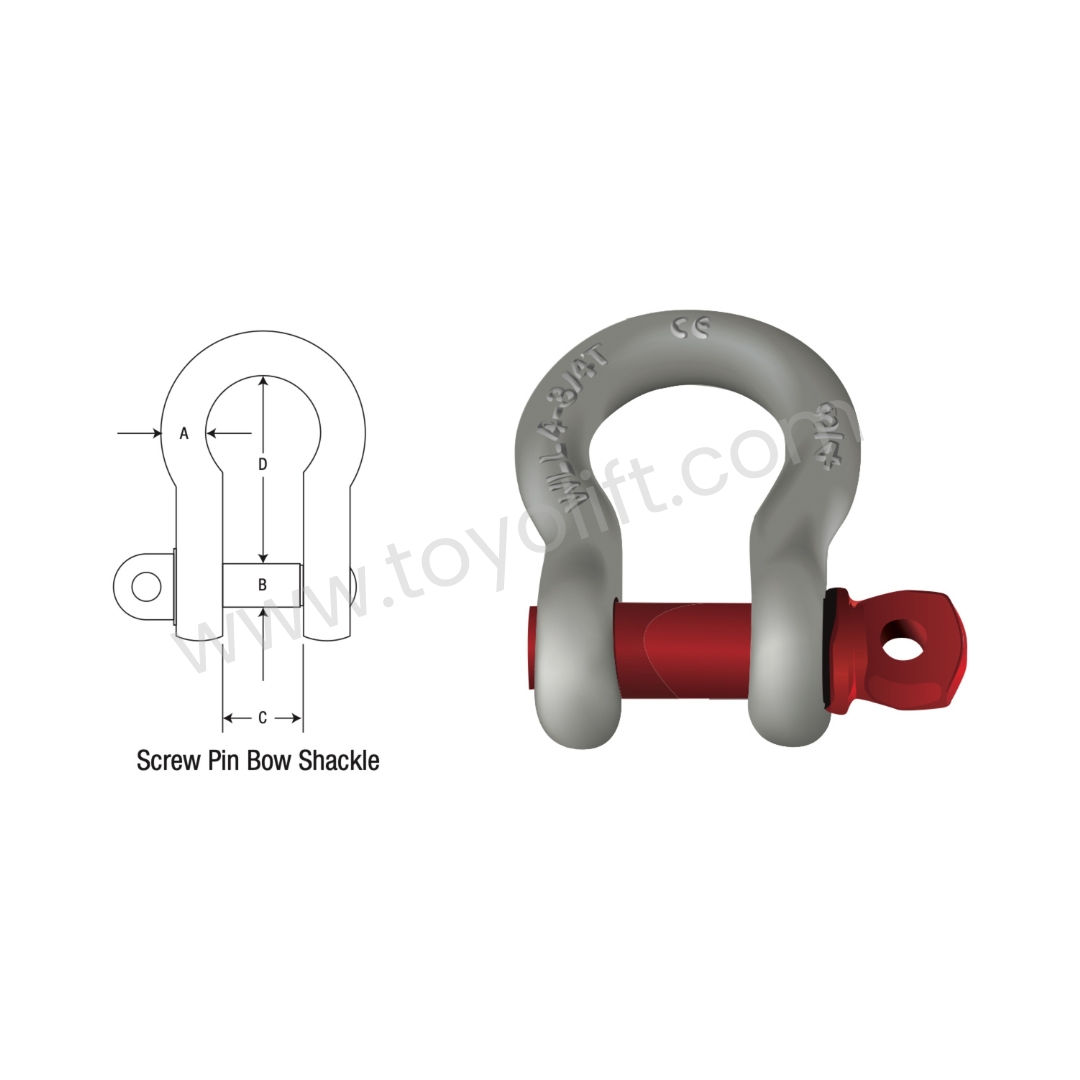

What is a screw pin bow shackle?
The Screw Pin Bow Shackle, designated TL-209, is a specialized type of TOYOLIFT rigging hardware. These components, categorized as alloy shackles, are engineered to establish a secure and robust connection point for lifting and rigging endeavors. They employ a bow shape and a safety pin mechanism to ensure their reliability and durability.
| FORGED ALLOY STEEL AND HOT DIP GALVANIZED, TOYOLIFT RED COLOR SCREW PIN SHACKLES, TESTED AND CERTIFIED | |||||||
|---|---|---|---|---|---|---|---|
| Size in Inch | S.W.L | A | B | C | D | Weight | |
| (Tons) | (mm) | Pin Dia. (mm) | (mm) | BOW (mm) | DEE (mm) | (Kgs/each) | |
| 3/8" | 1.00 | 9.5 | 11 | 17 | 36.5 | 32 | 0.15 |
| 7/16" | 1.50 | 11 | 12 | 18 | 42.5 | 36.5 | 0.21 |
| 1/2" | 2.00 | 12.7 | 16 | 20.6 | 47.3 | 41.3 | 0.37 |
| 5/8" | 3.25 | 16 | 19.8 | 27 | 60.5 | 51 | 0.65 |
| 3/4" | 4.75 | 19 | 22 | 32 | 71.5 | 62 | 1.04 |
| 7/8" | 6.50 | 21.7 | 27 | 36.6 | 84 | 74.8 | 1.56 |
| 1" | 8.50 | 25.4 | 30 | 43 | 96 | 81 | 2.32 |
| 1 1/8" | 9.50 | 28.5 | 33 | 46 | 108 | 90 | 3.28 |
| 1 1/4" | 12.00 | 31.5 | 36 | 51.6 | 119 | 100.8 | 4.51 |
| 1 3/8" | 13.50 | 34.9 | 39 | 57 | 133.5 | 112.5 | 5.93 |
| 1 1/2" | 17.00 | 38 | 42 | 60 | 147 | 125 | 7.89 |
| 1 3/4" | 25.00 | 44 | 52 | 73 | 178 | 146.5 | 13.4 |
| 2" | 35.00 | 50 | 56 | 82 | 197 | 171 | 18.85 |
| 2 1/2" | 55 | 63.5 | 68 | 105 | 267.5 | 203 | 37.86 |
Key Performance Features:
- High-Strength Construction: These shackles are constructed from forged alloy steel for maximum strength and durability.
- Corrosion Protection: To ensure longevity in demanding environments, the shackles are hot dip galvanized.
- Visibility and Safety: Both the Bow Shackles (TL-209) and the standard Screw Pin Dee Shackles (TL-210) feature a red color safety pin.
- Capacity Range: These shackles offer a wide range of operational capacity, available from 0.5 Ton S.W.L. up to 55.0 Ton S.W.L.
Safety and Compliance Standards
TOYOLIFT Shackles are manufactured to meet demanding safety and compliance specifications crucial for reliable lifting and rigging operations. The shackles adhere to the European standard EN 13889, ensuring they meet strict performance criteria. Additionally, these rigging components are designed to meet the performance requirements of the US FED Specification. A core safety feature of the Dee Shackles is the established safety factor, which dictates that the Minimum Breaking Load (MBL) equals 6 times the Working Load Limit (WLL). This significant margin provides a high degree of confidence and security for users operating within the shackle's rated load limits.
FAQ
Q: What materials are TOYOLIFT D-Shackles constructed from?
TOYOLIFT D-Shackles (models TL-209 and TL-210) are constructed from forged alloy steel to ensure maximum strength and durability.
Q: What protection is applied to the shackles to prevent corrosion?
The shackles are hot dip galvanized to protect against corrosion and ensure longevity, especially when used in demanding environments.
Q: What is the available capacity range (S.W.L.) for these D-Shackles?
The TOYOLIFT D-Shackles are available across a wide range of operational capacities, starting from 0.5 Ton S.W.L. up to 55.0 Ton S.W.L.
Q: What is the safety factor for the D-Shackles?
The safety factor for these shackles ensures that the Minimum Breaking Load (MBL) equals 6 times the Working Load Limit (WLL).
Q: Which safety and compliance standards do TOYOLIFT D-Shackles meet?
Our D-Shackles comply with the standard EN 13889 and are also manufactured to meet the performance requirements of the US FED Specification.
